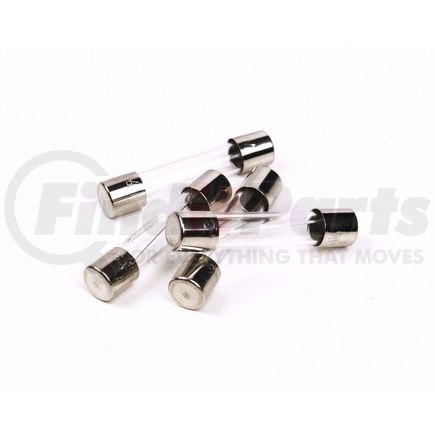

Grote 82AGW5 - Glass Fuse
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GROTE part description
Product Description
Glass Fuse
Features & Benefits
- Agency Standards & Listings: UL Listed 100mA~10A, UR Recognized 12A~30A, CSA Certified 100mA~30A
- Cost-effective standard automotive fuse for use in automotive, battery & general DC applications
- Cost-effective standard automotive fuse for use in automotive, battery and general DC applications
- Designed to meet ISO 8820 Standards specification
- For automotive circuits
- For use with In-Line holders and 1/4" clips
- Miniature, Low Profile Miniature and Standard Blade Fuses
- SAE specifications
- Size varies with rating to prevent over-fusing
- Standard Blade and Large Blade Fuses
- Visual indication glass body
Product Attributes
| Amperage | Various AGW |
| Design Current Load | 1000A at 32 VDC |
| Material | Glass Body/Nickel Plated |
| Prop 65 Label Required | Y |
| Standards | CSA Certified 100mA - 30A,UL Listed 100mA - 10A,UR Recognized 12A-30A |
| Voltage | 32V |
| Operating temperature | -55 degree C to +125 degree (-67 degree F to +257 degree F) |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 8536100000 |
