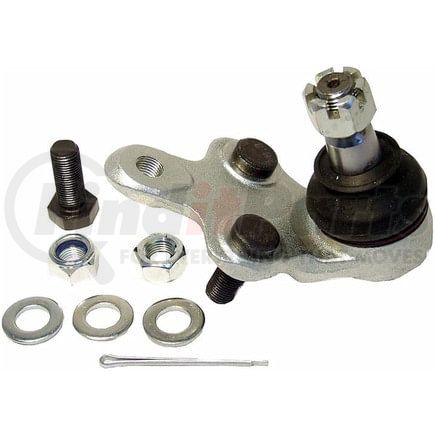

Delphi TC1516 - Ball Joint
$2399
MSRP: $32.22
Save: $8.23
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.543 IN |
| Maximum Outside Diameter | 90.00 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 90 MM |
| Type | Premium |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.476 IN |
| Mounting Bolt Length | 37.50 MM |
| Washers Included | Yes |
| Height | 2.756 IN |
| Height | 70.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.748 IN |
| Stud Thread Length | 19 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 43.90 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| 9202 | 0.492 IN |
| Mounting Bolt Shank Diameter | 12.50 MM |
| 9203 | 0.862 IN |
| Mounting Bolt Head Diameter | 21.90 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.689 IN |
| Stud Tapered End 2 Diameter | 17.5 MM |
| 9213 | 0.827 IN |
| Stud Tapered End 1 Diameter | 21 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 118.00 MM |
| Length | 4.650 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252932 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Toyota Solara (1999-2003)
- Toyota Sienna (1998-2003)
- Toyota Camry (1992-2001)
- Toyota Avalon (1995-2004)
- Lexus RX300 (1999-2003)
- Lexus ES300 (1992-2001)
