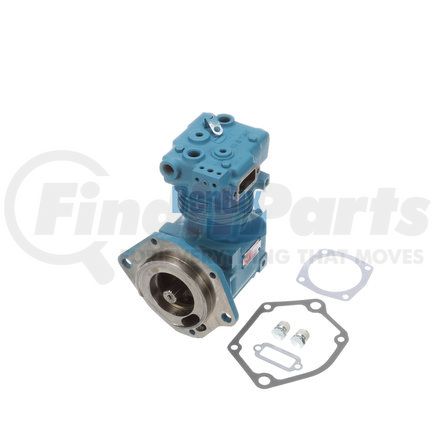

Bendix 109273 - BX-2150® Air Brake Compressor - Remanufactured, Engine Driven, Water/Air Cooling, 3-3/8 in. Bore Diameter
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BENDIX part description
Product Description
Compressor
Features & Benefits
- Provides and maintains air under pressure in order to operate devices in the air brake and/or auxiliary air systems
- A single-cylinder, single-stage reciprocating compressor consisting of the cylinder head and crankcase assemblies
- Equipped with a discharge line safety valve to protect the compressor head in the event of a discharge line freeze-up
- Engineered to meet the highest quality standards for maximum reliability
- Designed to deliver consistent quality and performance even under extreme operating conditions
- All Bendix air brake compressors are 100% end-of-line tested to ensure quality and reliability
Courtesy of Bendix – All rights reserved
Bendix BX-2150™ Series Air Brake Compressor
Engineered to offer better performance and efficiency, the Bendix BX-2150™ air brake compressor is all you need to restore the like-new condition of your truck's air brake system. It is a part of Bendix's comprehensive lineup of new and reman compressors designed to help fleets and vehicle owners extend their vehicle's service life and reduce their total cost of vehicle ownership.
Product Attributes
| Bore Diameter | 3-3/8 in. |
| Cooling Type | Air/Water |
| Cylinder Quantity | 1 |
| Discharge Port Diameter | 1/2 in. NPT |
| Governor Port Diameter | 1/8 in. NPT |
| New Or Remanufactured | Remanufactured |
| Operation | Engine Driven |
| Rated Displacement | 9.5 CFM @ 1250 RPM |
| Series | BX-2150® |
| Stroke Length | 1.468 in. |
| Water Port Diameter | 1/2 in. NPT |
Additional Information
| Core Class | 26 |
| Core Group | 01 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8414801615 |
| VMRS Code | 013009001 |
