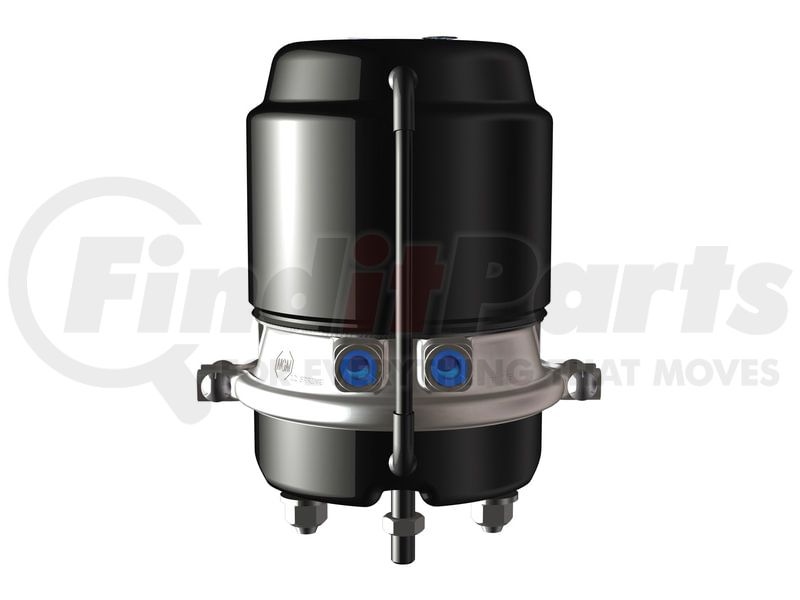

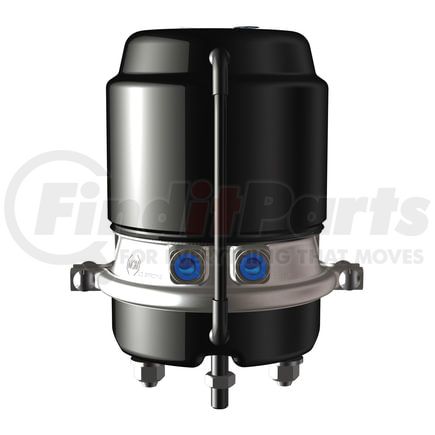

MGM Brakes MJS3028ET051 - Air Brake Chamber - Combination
- Part Number
- MJS3028ET051
- Manufacturer
- MGM BRAKES
- Description
-
Air Brake Chamber - Combination
details
$49249
MSRP: $949.42
Save: $456.93
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
Service Size: 30
Spring Size: 28
Features & Benefits
- Tamper Resistant Design
- Lighter Weight
- 3 inch (76.2 mm) Long Stroke
- Compact Size
- Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion -Approx. 1.25 inch (31.8 mm) Protrusion On "Long Stroke" Models When Manually Released
- Lower Hold Off Pressure (Less Air Consumption)
- Epoxy Coated Return Spring
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel head, Epoxy Coated
- Available With 1,749 lb (793.3 kg) -2,450 lb (1,111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 17-36
- Center Hole Shield
Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 23.10 lb (10.5 kg) |
| Weight lb (kg) Single | 14.92 lb (6.8 kg) |
| A | 10.73" (272.5 mm) |
| B | 8.43" (214.1 mm) |
| C | 8.32" (211.3 mm) |
| D | 7.50" (190.5 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC |
| G | 5/8 - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015218 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216045 |
| 4 | Diaphragm | 8017838 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064008 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | 9064028 |
| 6 | Return Spring | 8068022 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 9015122 |
| 9 | Kit -Nuts & Washers SAE | 9002001 |
| 9a | Kit -Nuts & Washers METRIC | 9002002 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | 8130016 |
| 11 | Kit -Breather Tube | 9081001 |
| 12 | Kit -Piggyback Plus SAE | MJS3028ET008 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
Features & Benefits
- Generous 3-inch (76.2 mm) long stroke capability, allowing for precise and reliable braking performance in diverse operating conditions
- Tamper-resistant design ensures the part’s security and integrity, providing peace of mind in challenging environments
- Lighter weight construction, offering enhanced maneuverability and fuel efficiency without compromising on durability
- Optimize space utilization with its compact size, enabling easy installation and flexibility in various vehicle configurations
- Patented integral release bolt mechanism for minimal bolt protrusion, facilitating manual release
- Enhance operational efficiency and cost savings with lower hold-off pressure, reducing air consumption
Product Description
Features & Benefits
- Generous 3-inch (76.2 mm) long stroke capability, allowing for precise and reliable braking performance in diverse operating conditions
- Tamper-resistant design ensures the part’s security and integrity, providing peace of mind in challenging environments
- Lighter weight construction, offering enhanced maneuverability and fuel efficiency without compromising on durability
- Optimize space utilization with its compact size, enabling easy installation and flexibility in various vehicle configurations
- Patented integral release bolt mechanism for minimal bolt protrusion, facilitating manual release
- Enhance operational efficiency and cost savings with lower hold-off pressure, reducing air consumption
MGM Brakes Air Brake Chamber
The MGM Brakes Air Brake Chamber is vital in the safety and performance of commercial vehicles, offering unparalleled reliability and control in braking systems. It delivers consistent, powerful braking action, ensuring the safety of both vehicle and cargo under diverse operating conditions. This component features a robust design that withstands the rigors of daily use, reducing maintenance needs and extending the life of the braking system. The use of cutting-edge technology and high-quality materials make the brand’s air brake chambers, including the MGM Brakes MJS3028ET051, a preferred choice for commercial vehicle operators who demand the best in safety and performance.
MGM BRAKES MJS3028ET051 Cross Reference
We have 2 alternatives for the MJS3028ET051 by MGM BRAKES:
