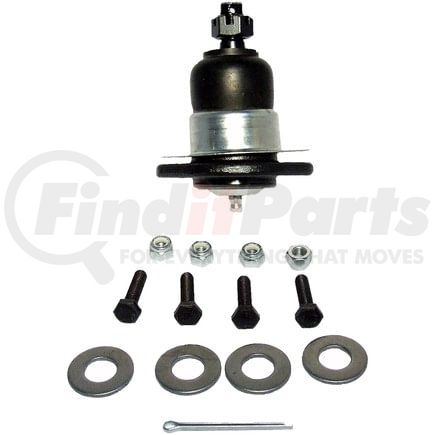

Delphi TC1602 - Ball Joint
$2299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Upper |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.752 IN |
| Maximum Outside Diameter | 95.30 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 108.8 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.587 IN |
| Mounting Bolt Length | 40.30 MM |
| Washers Included | No |
| Height | 4.465 IN |
| Height | 113.40 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.768 IN |
| Stud Thread Length | 19.5 MM |
| 839 | 13mm |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 27.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| 9203 | 0.571 IN |
| Mounting Bolt Head Diameter | 14.50 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 1.299 IN |
| Mounting Bolt Thread Length | 33.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.768 IN |
| Stud Tapered End 2 Diameter | 19.5 MM |
| 9213 | 0.591 IN |
| Stud Tapered End 1 Diameter | 15 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604278628 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Chevrolet Kingswood (1971-1972)
- Chevrolet Townsman (1971-1972)
- Chevrolet Chevelle (1973)
- Chevrolet Brookwood (1971-1972)
- Chevrolet Biscayne (1971-1972)
- Pontiac Ventura (1975-1977)
- Pontiac Phoenix (1977-1979)
- Pontiac Safari (1987-1989)
- Pontiac Grand Safari (1971-1978)
- Pontiac Grandville (1971-1975)
- Pontiac Grand LeMans (1975-1983)
- Pontiac Firebird (1970-1981)
- Pontiac Catalina (1971-1981)
- Oldsmobile Omega (1975-1979)
- Oldsmobile Toronado (1979-1985)
- Oldsmobile Vista Cruiser (1973-1975)
- Oldsmobile Cutlass Cruiser (1980-1983)
- Oldsmobile Delta 88 (1971-1985)
- Oldsmobile Cutlass Supreme (1973-1988)
- Oldsmobile Cutlass Tiara (1976)
- Oldsmobile Cutlass Calais (1978-1984)
- Oldsmobile Cutlass Salon (1975-1980, 1985-1987)
- Oldsmobile Cutlass (1973-1981, 1985-1987)
- Oldsmobile 98 (1971-1984)
- GMC Sprint (1973-1977)
- Chevrolet Nova (1975-1979)
- Chevrolet Malibu (1973-1983)
- Chevrolet Laguna (1973-1976)
- Chevrolet Camaro (1970-1981)
- Chevrolet Bel Air (1971-1975, 1981)
- Cadillac Eldorado (1977-1985)
- Cadillac DeVille (1977-1984)
- Chevrolet Commercial Chassis (1991-1994)
- Pontiac GTO (1971-1973)
- Buick Centurion (1971-1973)
- Pontiac Parisienne (1971-1974, 1976-1986)
- Pontiac LeMans (1973-1981)
- Pontiac Grand Prix (1973-1987)
- Pontiac Grand Am (1973-1975, 1978-1980)
- Pontiac Bonneville (1971-1986)
- Oldsmobile Custom Cruiser (1971-1992)
- GMC Safari (1985-2005)
- GMC Sonoma (1991-2003)
- GMC S15 (1982-1990)
- GMC Jimmy (1992-2002)
- GMC S15 Jimmy (1983-1991)
- GMC Caballero (1978-1987)
- Chevrolet S10 (1982-2003)
- Chevrolet Blazer (1995-2005)
- Chevrolet S10 Blazer (1983-1994)
- Chevrolet Monte Carlo (1973-1988)
- Chevrolet LLV (1987-1995)
- Chevrolet Impala (1971-1985, 1994-1996)
- Chevrolet El Camino (1973-1987)
- Chevrolet Caprice (1971-1996)
- Chevrolet Astro (1985-2005)
- Cadillac Seville (1976-1985)
- Cadillac Brougham (1987-1992)
- Cadillac Fleetwood (1977-1986, 1993-1996)
- Cadillac Commercial Chassis (1977-1996)
- Buick Skylark (1975-1979)
- Buick Commercial Chassis (1991-1996)
- Buick Roadmaster (1991-1996)
- Buick Riviera (1971-1985)
- Buick Regal (1973-1987)
- Buick LeSabre (1971-1990)
- Buick Estate Wagon (1971-1983)
- Buick Electra (1971-1989)
- Buick Century (1973-1981)
- Buick Apollo (1975)
- Isuzu Hombre (1996-2000)
