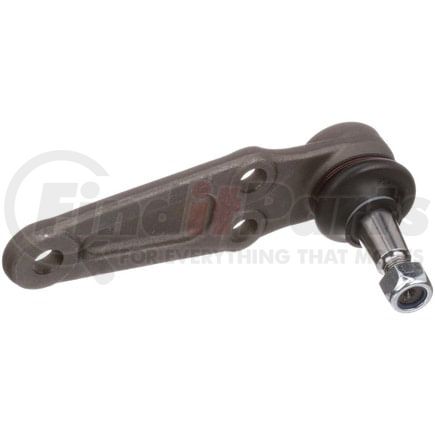

Delphi TC159 - Ball Joint
$2849
MSRP: $37.49
Save: $9.00
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.126 IN |
| Maximum Outside Diameter | 54.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 54 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.772 IN |
| Mounting Bolt Length | 45.00 MM |
| Washers Included | Yes |
| Height | 3.630 IN |
| Height | 92.20 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.748 IN |
| Stud Thread Length | 19 MM |
| 839 | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 90.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.866 IN |
| Mounting Bolt Head Diameter | 22.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.713 IN |
| Stud Tapered End 2 Diameter | 18.1 MM |
| 9213 | 0.606 IN |
| Stud Tapered End 1 Diameter | 15.4 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 178.00 MM |
| Length | 7.010 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604274262 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Volvo 265 (1976-1978)
- Volvo 264 (1976-1978)
- Volvo 262 (1976, 1978)
- Volvo 245 (1975-1981)
- Volvo 244 (1975-1981)
- Volvo 242 (1975-1981)
