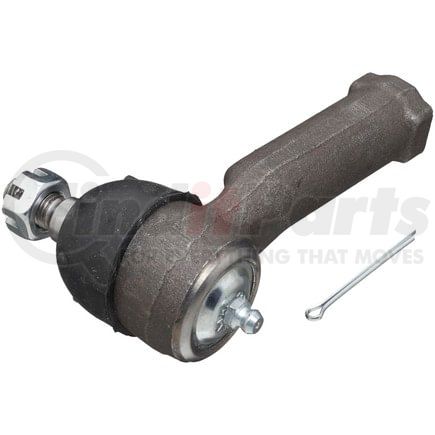

Name: Delphi TA2556 Tie Rod End
SKU: ta2556
Price: 26.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Color	Gray
End 1 Gender	Male
End 2 Gender	Female
Pre-Greased	Yes
Dust Boot Included	Yes
Width	37 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.630 IN
End 2 Thread Diameter	16.00 MM
Height	82.50 MM
Housing Material	Steel
36	0.866 IN
Tube Diameter	22.00 MM
Adjustable	No
Weight	0.94 lb
Cone Outside Diameter	15.50 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.25 MM
Length Stud Center to End	3.622 IN
Length Stud Center to End	92.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.394 IN
End 1 Thread Diameter	10.00 MM
Shank Length	15.50 MM
Stud Length	15.50 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.610 IN
Stud Length	0.610 IN
662	0.610 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604275061
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Mercury Mystique (1997-2000)
Mercury Cougar (1999-2002)
Ford Contour (1997-2000)
