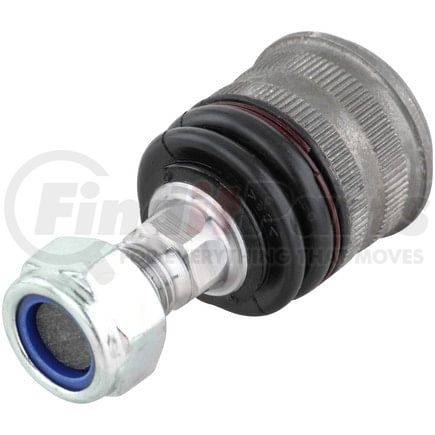

Delphi TC2254 - Ball Joint
$2599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower Inner |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.264 IN |
| Maximum Outside Diameter | 32.10 MM |
| Color | Gray |
| Stud Thread Diameter | 0.394 IN |
| Stud Thread Diameter | 10 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 38 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.063 IN |
| Mounting Bolt Length | 27.00 MM |
| Washers Included | No |
| Height | 2.910 IN |
| Height | 74.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.61 IN |
| Stud Thread Length | 15.5 MM |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 46.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| 9203 | 0.591 IN |
| Mounting Bolt Head Diameter | 15.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.591 IN |
| Mounting Bolt Thread Length | 15.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.549 IN |
| Stud Tapered End 2 Diameter | 13.95 MM |
| 9213 | 0.504 IN |
| Stud Tapered End 1 Diameter | 12.8 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 38.00 MM |
| Length | 1.500 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604256435 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz E280 (2007)
- Mercedes-Benz E350 (2006-2009)
- Mercedes-Benz CLS500 (2006)
- Mercedes-Benz SL65 AMG (2005-2011)
- Mercedes-Benz SL600 (2004-2011)
- Mercedes-Benz SL500 (2001-2006)
- Mercedes-Benz S600 (2001-2005)
- Mercedes-Benz S500 (1998-2005)
- Mercedes-Benz S430 (2000-2005)
- Mercedes-Benz S320 (1999)
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E320 (2002-2006)
