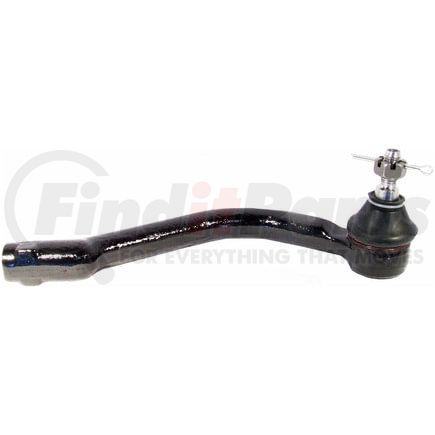

Name: Delphi TA2701 Tie Rod End
SKU: ta2701
Price: 29.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Color	Gray
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	73 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.630 IN
End 2 Thread Diameter	16.00 MM
Height	72.30 MM
Housing Material	Steel
36	0.945 IN
Tube Diameter	24.00 MM
Adjustable	No
Greasable	No
Weight	1.88 lb
Cone Outside Diameter	15.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	8.583 IN
Length Stud Center to End	218.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.394 IN
End 1 Thread Diameter	10.00 MM
Shank Length	15.00 MM
Stud Length	15.00 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.591 IN
Stud Length	0.591 IN
662	0.591 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604249086
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Hyundai Azera (2006-2008)
Hyundai Sonata (2004-2008)
