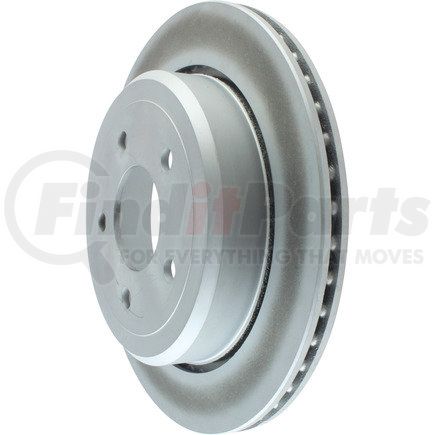

Centric 320.61073 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Max Pb Drum Dia [cntrc] In | 7.276 |
| Weight [cntrc] Kgs | 6.140 |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 13.500 |
| Max Pb Drum Dia [cntrc] Mm | 184.800 |
| Discard Thickness | 18.000 MM |
| Discard Thickness | 0.709 IN |
| Nominal Thickness | 0.748 IN |
| Nominal Thickness | 19.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 58.600 MM |
| Overall Height | 2.307 IN |
| Outside Diameter | 11.614 IN |
| Outside Diameter | 295.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 184.000 MM |
| Nominal Drum Diameter | 7.244 IN |
| Bearings Included | No |
| Center Hole Diameter | 70.700 MM |
| Center Hole Diameter | 2.783 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.300 MM |
| Stud/Lug Hole Diameter | 0.563 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590251951 |
Part Interchanges
CENTRIC 320.61073 Cross Reference
We have 4 alternatives for the 320.61073 by CENTRIC:
