Name: Raybestos 66630FZN Raybestos Element3 Coated Brake Rotor
SKU: 66630fzn
Price: 58.49 USD
Availability: InStock

RAYBESTOS part description

Product Description

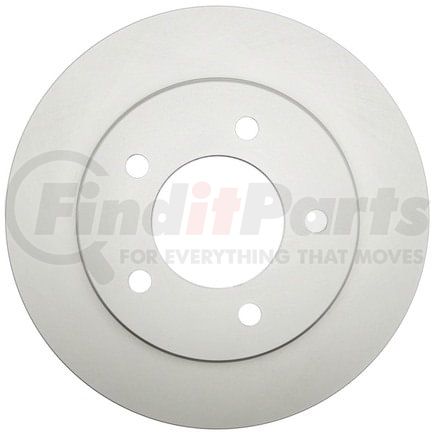

Raybestos Element3 Coated Brake Rotor

Application Summary

2004-1997 Ford F-150 Front, 2004 Ford F-150 Heritage Front, 2003-2002 Ford Lobo Front

Product Attributes

ABS Tone Ring Included	No
Center Hole Diameter	3.55 IN
Center Hole Diameter	90.15 MM
9565	Conventional
9540	Non-Directional
Discard Thickness	0.965 IN
Discard Thickness	24.5 MM
Harmonize Code	8708.30.5030
Material	Cast Iron
Mounting Bolt Hole Circle Diameter	5.315 IN
Mounting Bolt Hole Circle Diameter	135 MM
Mounting Bolt Hole Diameter	0.588 IN
Mounting Bolt Hole Diameter	14.95 MM
Mounting Bolt Hole Quantity	5
Nominal Thickness	1.025 IN
Nominal Thickness	26.05 MM
Outside Diameter	12.12 IN
Outside Diameter	307.85 MM
Overall Height	2.045 IN
Overall Height	51.95 MM
Salability Restrictions	No
Solid Or Vented Type Rotor	Vented
Stud/Lug Hole Quantity	5
UNSPSC Code	25171715

Additional Information

Country of Origin (Primary)	CN
UPC	00887213090994

Part Interchanges

RAYBESTOS 66630FZN Cross Reference

We have 84 alternatives for the 66630FZN by RAYBESTOS:

Fits Vehicles

Ford Lobo (2002-2003)
Ford F-150 Heritage (2004)
Ford F-150 (1997-2004)
