SEALED POWER part description

Product Description

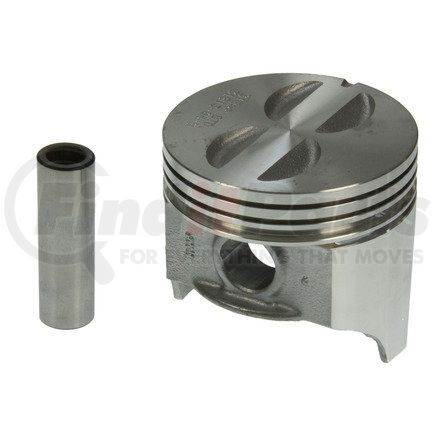

Engine Piston Set

Features & Benefits

  • Cast with FM413 Eutectic aluminum with 12% silicon for strength and durability
  • Performance/dependability of OE pistons - high quality aluminum casting & machining provide reliability, durability & long life of part
  • State-of-the-art manufacturing
  • Exacting tolerances
  • Meets or exceeds OEM specifications
  • Up-tilt ring grooves improve piston to ring sealing & providing great blow-by control

Product Attributes

Oversized No
Top Compression Ring Thickness 0.078125 IN
Second Compression Ring Thickness 0.078125 IN
Piston Pin Outside Diameter 0.9275 IN
Assembly Lubricant Included No
Bore Diameter 4.0000 IN
Piston Material Cast Aluminum
9607 1.654 IN
Part Description Engine Piston
Grade Type Premium

Additional Information

Country of Origin (Primary) IN
Canadian Harmonizing Tariff Code 8409910010
Harmonized Tariff Code (Schedule B) 8409915085
Harmonized Tariff Code (HTS) 8409915085
UPC 00019826518590

Part Interchanges

Fits Vehicles

  • Chevrolet Malibu (1964-1967)
  • Chevrolet Impala (1962-1968)
  • Chevrolet Corvette (1962-1968)
  • Chevrolet Chevy II (1965-1968)
  • Chevrolet Chevelle (1964-1968)
  • Chevrolet Caprice (1966-1968)
  • Chevrolet Camaro (1967-1968)
  • Chevrolet Biscayne (1962-1968)
  • Chevrolet Bel Air (1962-1968)
  • Checker Taxicab (1969)
  • Checker Aerobus (1966-1968)
  • Pontiac Beaumont (1964-1968)
  • Pontiac Strato-Chief (1962-1968)
  • Pontiac Parisienne (1962-1968)
  • Pontiac Laurentian (1962-1968)
  • Checker Deluxe (1969)
  • Checker Marathon (1965-1969)
  • Pontiac Acadian (1965-1968)
