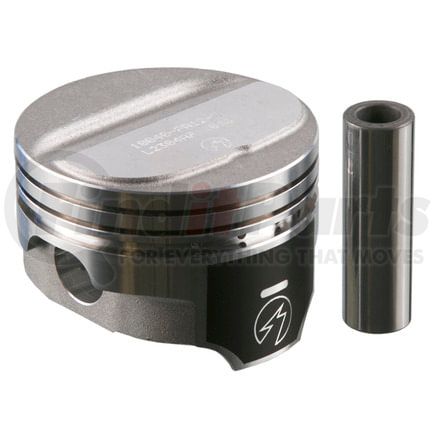

Name: Sealed Power L-2304AF 30 "Speed Pro" POWERFORGED Engine Piston
SKU: l2304af30
Price: 707.92 USD
Availability: InStock

SEALED POWER part description

Product Description

Engine Piston

Application Summary

Chevy Small Block 350

Features & Benefits

Forged under 3,000 tons of force.
Fully updated skirt profiles
Exclusive DUROSHIELD(R) skirt coating. DUROSHIELD(R) provides scuff resistance, reduced bore clearances and enhanced ring sealing.
SPEED-PRO(R) POWERFORGED(R) pistons are built to stringent specifications with a precision CNC-machined dome and skirts and microfinished ring grooves.
The manufacturing process ensures that piston weights within a boxed set will not vary more than 4 grams and that skirt sizes are matched to within 0.016mm (0.0006") per set.
In the box: Engine set of weight-matched SPEED-PRO(R) POWERFORGED(R) pistons, pins and lock rings (if required).

Product Attributes

Oversized	Yes
Oversized Amount	.030 IN
Grade Type	Performance
Top Compression Ring Thickness	0.0781 IN
Second Compression Ring Thickness	0.0781 IN
Oil Ring Thickness	0.1875 IN
Assembly Lubricant Included	No
Cylinder Bore Diameter	4.030 IN
Piston Material	POWERFORGED(R)
9607	1.560 IN
Dome Volume CC	2.4
Head Illustration	132
Head Type	.100 dome; DUROSHIELD skirt coated piston
Lock Ring	N/R
Minimum Clearance	.0040
Part Description	Engine Piston
Pin Diameter (Inch)	0.927
Pin Type	P
Pin Weight Gram	159
Weight W Pin Gram	742
Weight w/o Pin Gram	583

Additional Information

Country of Origin (Primary)	IN
Canadian Harmonizing Tariff Code	8409910010
Harmonized Tariff Code (HTS)	8409915085
UPC	00019826219237

Speed-Pro® is the go-to brand not only for racers and performance enthusiasts but also for those who are cruising down the road day in day out. With its engineering expertise, advanced technologies, and industry-leading manufacturing facilities and techniques, Speed-Pro sets the bar higher for other manufacturers of pistons, engine bearing parts, and performance engine components. The engine solutions from Speed-Pro are meticulously designed and crafted to boost horsepower production and make engine rebuild an easy feat. Since its establishment, this brand has continuously improved and refined its operations and quality control measures to maintain high quality standards and satisfy customers’ requirements and demands.
