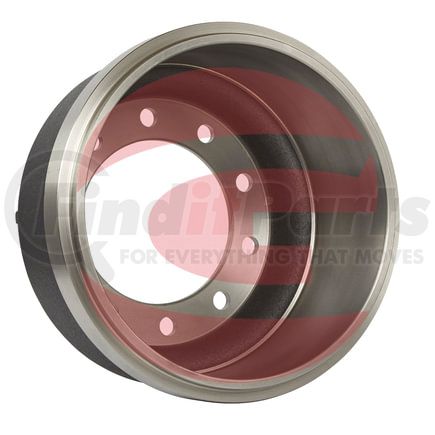

(888) 312-8812 Login SignupACCURIDE 3786X Brake Drum, Cast Iron, Outboard, 16.50x6.00 (Gunite)

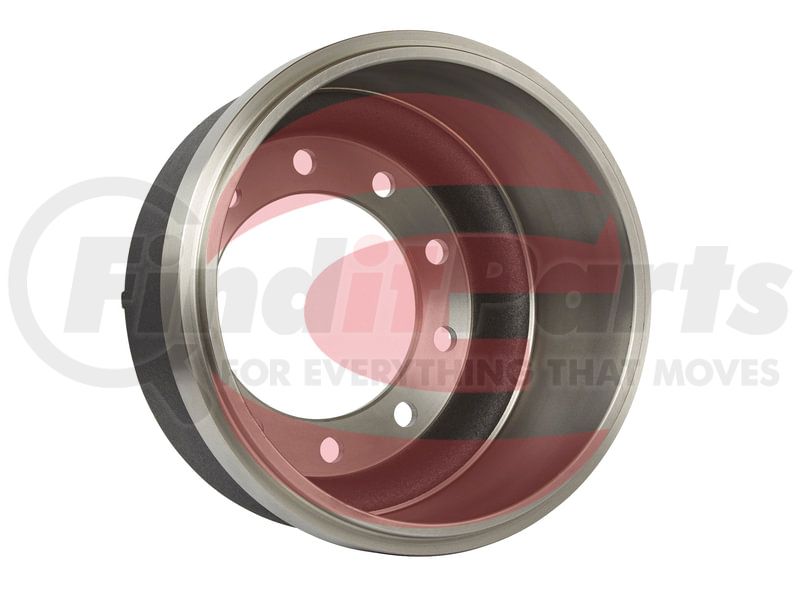

*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
ACCURIDE 3786X Part Description
Manufacturer
Technical Specifications
| Aftermarket Status | Active |
| Finished Weight | 131 |
| Maximum Wear Diameter | 16.62 |
| Drum Mount | Outboard |
| Drum Type | BDF |
| Wheel Type | Disc |
| Overall Diameter | 18.88 |
| Dust Shield Recess Diameter | 18.15 |
| Dust Shield Recess Depth | 0.69 |
| Brake Size | 16.50x6.00 |
| Brake Surface Diameter | 16.5 |
| Brake Surface Width | 6.78 |
| Mounting Flange Diameter | 13.5 |
| Overall Depth | 9.88 |
| Pilot Diameter | 9 |
| Bolt Circle Diameter | 11.25 |
| Number of Bolt Holes | 10 |
| Bolt Hole Size | 1.25 |
| Squealer Band Width | 1.72 |
| Mounting Flange Thickness | 0.62 |
| Outside Sidewall Diameter | 17.58 |
| Sidewall Offset | 2.63 |
| Inside Finished Diameter | 13.18 |
| Brake Size | 6 |
| Bolt Circle Diameter (In.) | 16.5 |
| Bolt Holes And Size | 10.00 |
| Overall Depth (In.) | 9.88 |
| Pilot Diameter (In.) | 9 |
| Brake Type | BDF |
ACCURIDE 3786X Customer Reviews
No reviews yet
Be the first to review this product!
ACCURIDE 3786X Manufacturer Information
Accuride® is a proud manufacturer of durable and dependable wheels for commercial and passenger vehicles. It is committed to delivering only the highest quality products to OEMs and the aftermarket, with the Accuride Quality and Lean Manufacturing System (QLMS) in place at each of its ISO/IATF 16949SO-certified facilities. Although this brand is more popular for its aluminum and steel commercial vehicle wheels, it also offers some of the best brake drums, brake rotors, slack adjusters, and hub assemblies in the market today. All these components are designed and produced following the strictest standards for maximum performance, durability, and reliability.
ACCURIDE 3786X Questions & Answers
No questions yet
Be the first to ask a question about this product!
