GATES G25680-1021 Part Description
Manufacturer
Product Description

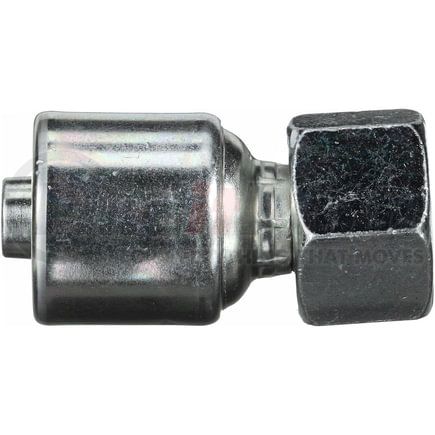

Female French GAZ Swivel (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
GATES G25680-1021 Specifications
Product Attributes
| Coupling Description | MegaCrimp Female French GAZ Swivel |
| Industrial Description | 10G-21FFGX |
| Thread Size | M30X1.5 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Nut Hex Size | 36 MM |
| Cut-Off Length | .87 IN |
| Length | 2.34 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Inverted |
| Mating Angle | 24 |
| Gender | Female |
| Swivel | Yes |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 22 MM |
| Length | 59.5 MM |
Additional Information
| Country of Origin (Primary) | CZ |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075614081 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25680-1021 Part Interchanges
| Brand | Part Number |
|---|---|
| NAPA | G25680-1021 |
