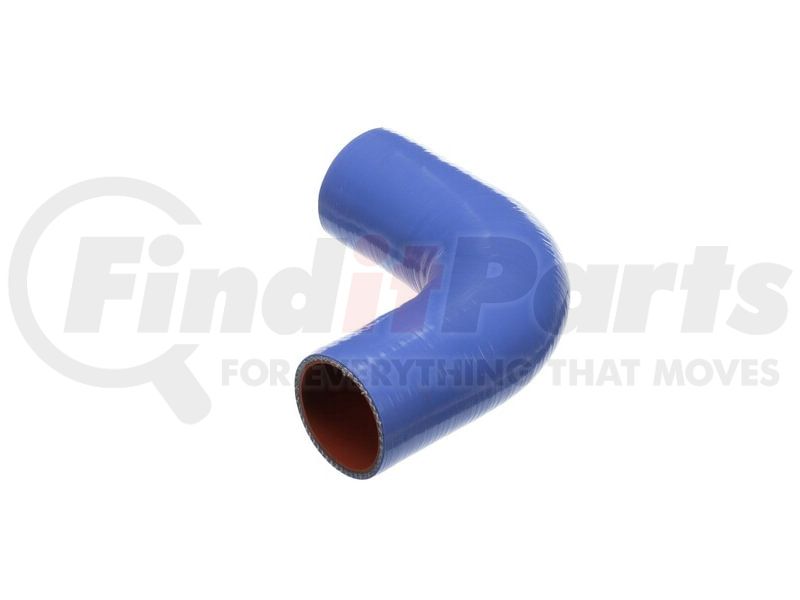

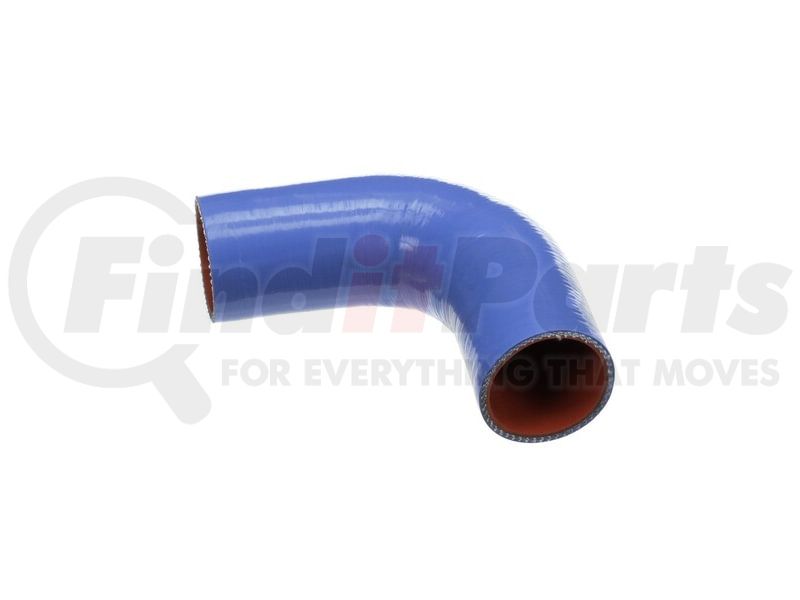

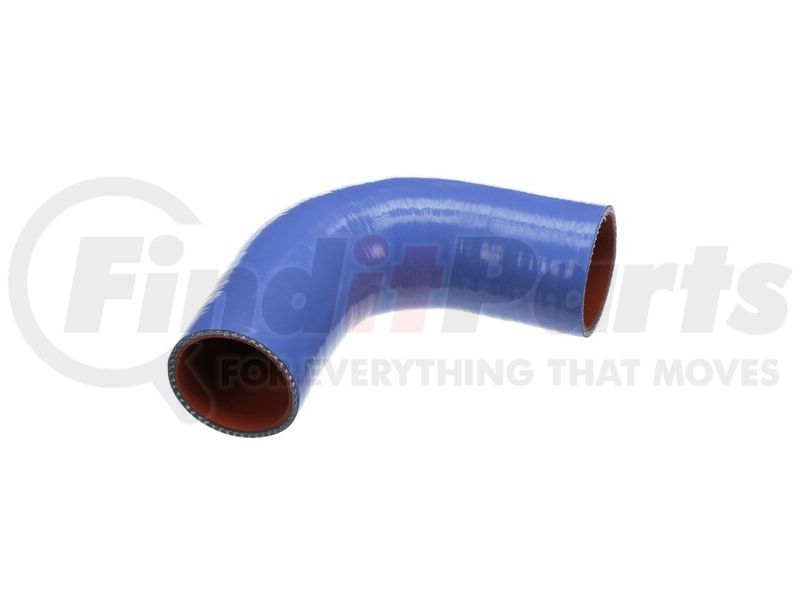

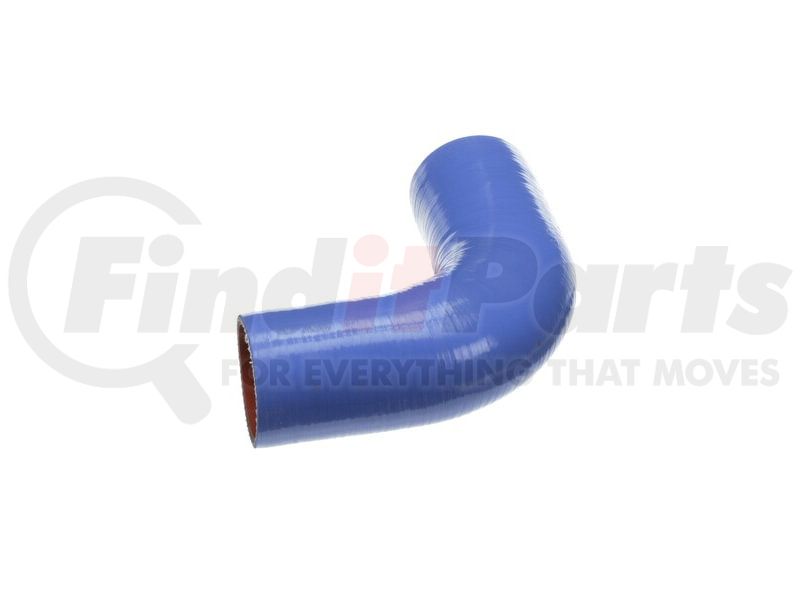

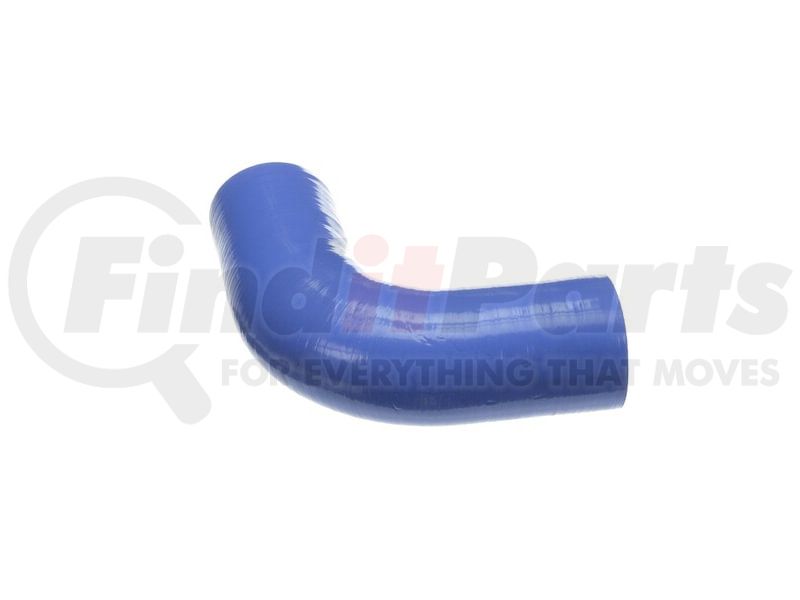

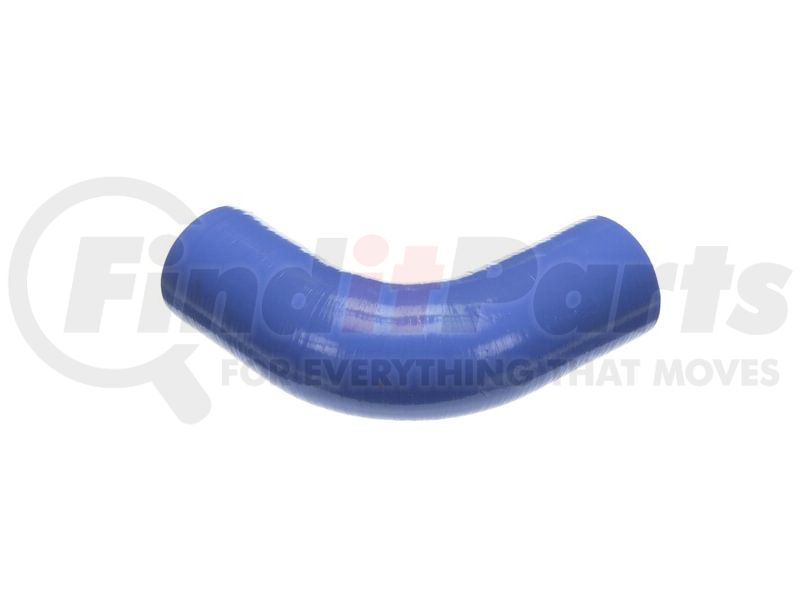

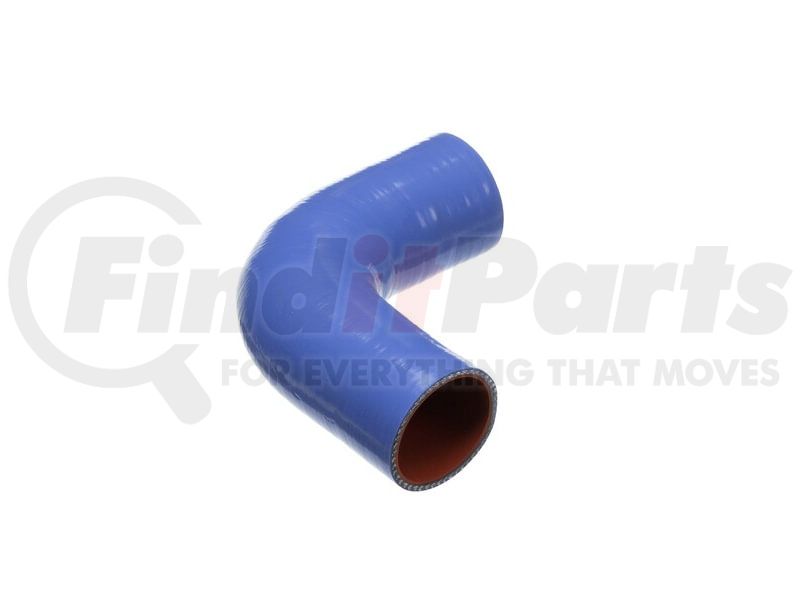

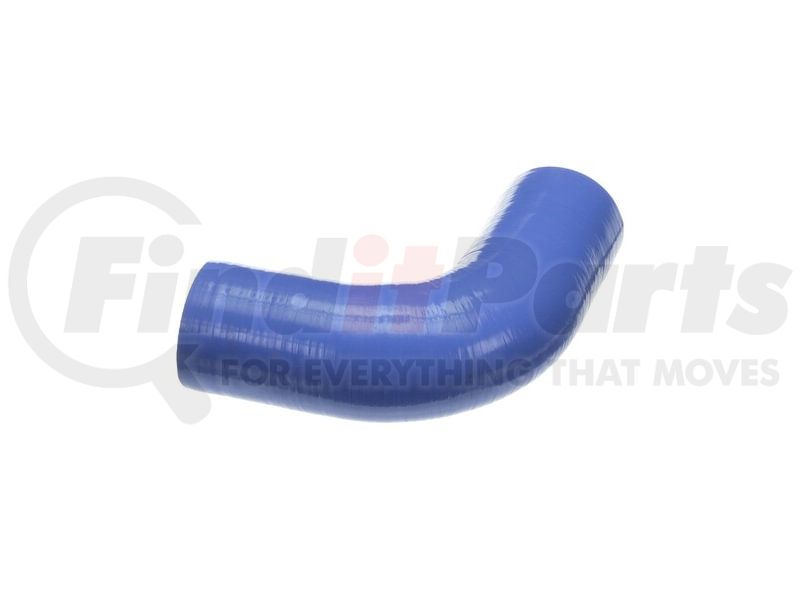

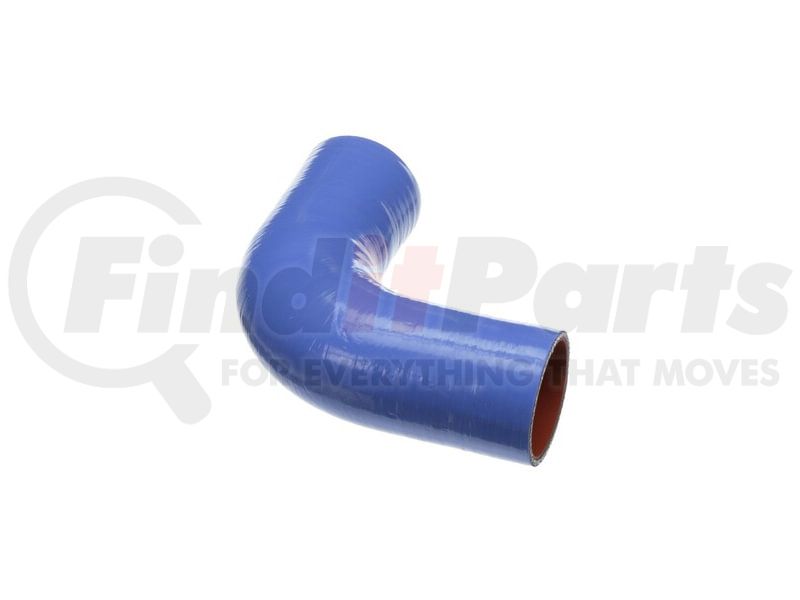

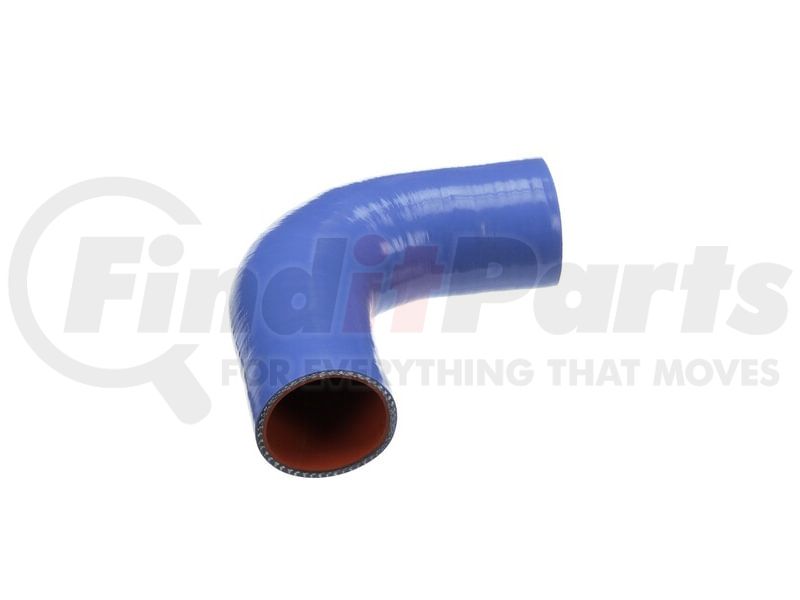

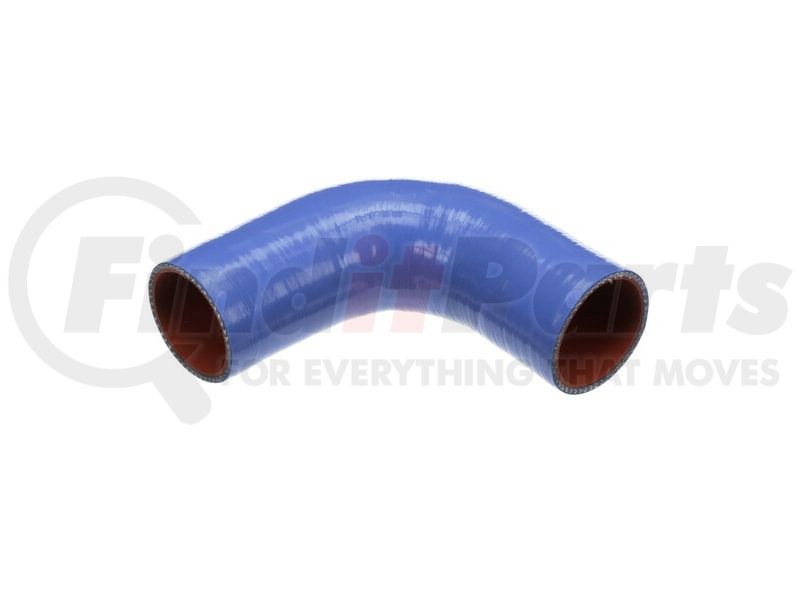

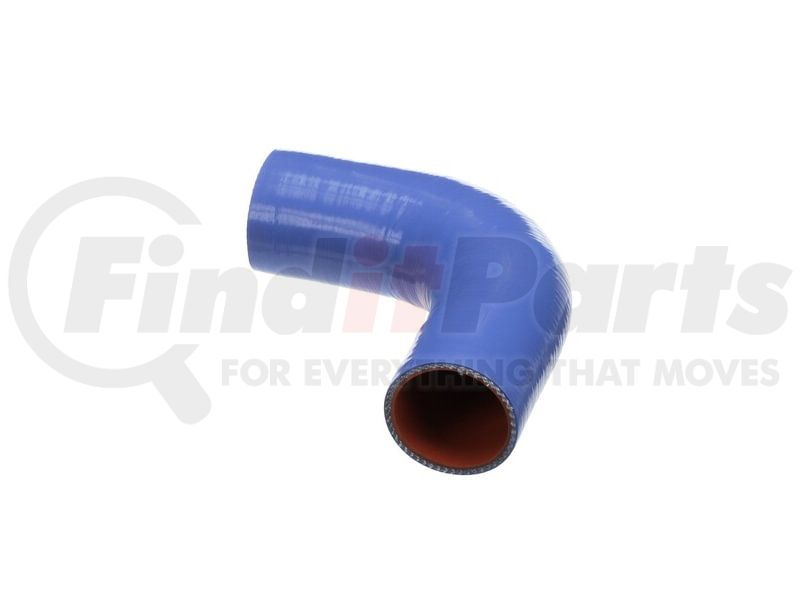

Gates 28212 - Molded 90 Degree Silicone Coolant Hose
$9849
MSRP: $182.20
Save: $83.71
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Molded 90 Degree Silicone Coolant Hose
Application Summary
2022-19 Kenworth, T680, Cummins X15 Diesel, Upper - Eng. To Pipe
Features & Benefits
- Premium 4-ply construction
- High-heat resistance material meets or exceeds OE specifications
- Multiple layers of first grade silicone material
- Industry standard blue cover and orange tube for easy identification
- Polyester knit reinforcement, unaffected by permeation of coolants and heat
- Extra thick and resilient tube prevents cold water leaks and hardening under effect of heat
- High-grade silicone cover resists coolants, ozone, weathering, sunlight and extreme ambient temperatures
- Exceeds requirements of SAE J20R1, Class A
- Temperature Range: -65 Deg. F to +350 Deg. F (-54 Deg. C to +177 Deg. C)
- Gates also offers application-specific molded silicone coolant hose for exact dimensional specifications
Product Attributes
| Centerline Length | 12 IN |
| Arm Length | 6 IN |
| End 1 Inside Diameter | 2.5 in |
| End 2 Inside Diameter | 2.5 in |
| Angle | 90 |
| Construction | Premium 4-Ply Polyester-Reinforced |
| Working Temperature Range | -65 Deg. to +350 Deg. F (-54 Deg. C to +177 Deg. C) |
| Material | Silicone |
| 9839 | Yes |
| Centerline Length | 305 MM |
| 5034 | 152 MM |
| End 1 Inside Diameter | 64 MM |
| End 2 Inside Diameter | 64 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075461517 |
| VMRS Code | 042004061 |
| UNSPSC | 40142000 |
Part Interchanges
- CARQUEST 28212
- Continental Belt 57656
- Dynacraft F501164
- Dynacraft F046006
- Volvo Cars 25176549
- Volvo Cars 204233209
- International Harvester (IHC) 2008028C1
- Paccar Parts F046006
- Mack 11MF3592M32
- Freightliner Trucks 204233412
- NAPA Belts/Hose H19612
- Volvo White 204230068
- Volvo White 204233213
- Purosil 90-250-MK
- Continental Belt 57640
- Continental Belt 90363
Fits Vehicles
- International 8600 TranStar (2010)
- Kenworth T370 (2008)
- International 7600 (2012)
- Kenworth W990 (2020-2022)
- Mack CHN (2005)
- Peterbilt 520 (2019-2020)
- Western Star 4900SA (2017)
- International WorkStar 7600 (2012)
- Western Star 4900FA (2009)
- Volvo WAH (1996-2001)
- Freightliner Cascadia (2015-2017)
- Peterbilt 587 (2011-2017)
- Kenworth T700 (2011-2015)
- Peterbilt 387 (2011)
- Kenworth C500 (2010, 2013-2015)
- Peterbilt 579 (2013-2022)
- Peterbilt 389 (2009-2023)
- Kenworth T880 (2014-2023)
- Kenworth T680 (2013-2022)
- Peterbilt 388 (2008-2015)
- Peterbilt 386 (2007, 2009-2015)
- Peterbilt 367 (2008-2021)
- Kenworth T660 (2009-2018)
- Peterbilt 567 (2014-2023)
- Peterbilt 384 (2009-2016)
- Kenworth W900 (2009-2019, 2021-2023)
- Peterbilt 320 (2012-2017)
- Peterbilt 365 (2008-2019)
- Kenworth T800 (2008-2022)
- Freightliner Classic (2008)
- International 9200i SBA (2009-2010)
