GATES G25170-0404T Part Description
Manufacturer
Product Description

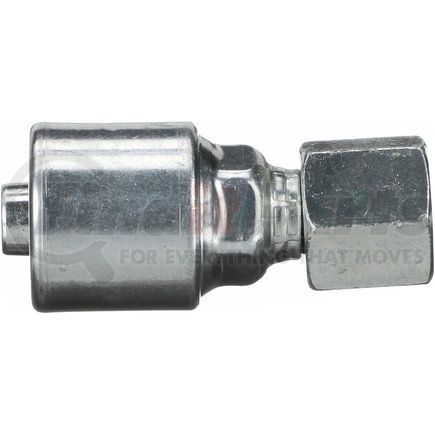

Female JIC 37 Flare Swivel - TuffCoat Xtreme Plating (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
GATES G25170-0404T Specifications
Product Attributes
| Stem Hex Size | 15 MM |
| Nut Hex Size | 14 MM |
| Cut-Off Length | 1.18 IN |
| Length | 2.2 IN |
| Seal Type | Mated Angle |
| Nose Seat Type | Standard |
| Mating Angle | 37 |
| Gender | Female |
| Bent Tube Angle | Straight |
| Swivel | Yes |
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - TuffCoat Xtreme Plating |
| Industrial Description | 4G-4FJX-TCX |
| Thread Size | 7/16-20 |
| Inside Diameter | .25 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Inside Diameter | 6.4 MM |
| Cut-Off Length | 29.9 MM |
| Length | 55.9 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 7508905000 |
| Stock Status | N |
| UPC | 00770075639558 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G25170-0404T Cross References
| Brand | Part Number |
|---|---|
| N/A | 04032867 |
| NAPA | G25170-0404T |
