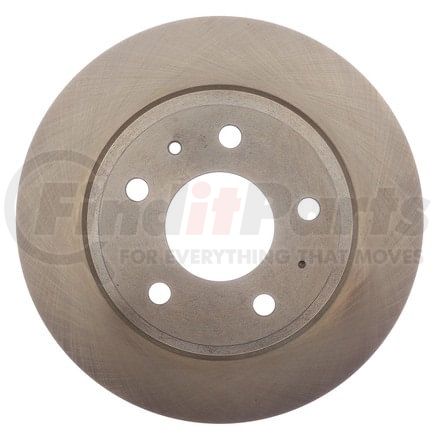

(888) 312-8812 Login SignupRAYBESTOS 981023R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 981023R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2021-2014 Mazda 6 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 981023R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.68 IN |
| Center Hole Diameter | 68.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.339 IN |
| Inside Diameter | 186.4 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.486 IN |
| Mounting Bolt Hole Circle Diameter | 113.95 MM |
| Mounting Bolt Hole Diameter | 0.512 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.276 IN |
| Nominal Thickness | 7 MM |
| Outside Diameter | 10.929 IN |
| Outside Diameter | 277.6 MM |
| Overall Height | 1.555 IN |
| Overall Height | 39.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213082722 |
RAYBESTOS 981023R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH507666P |
| AUTOPARTSOURCE | 474881 |
| AUTOXTRA | AX901292 |
| AutoZone | 77108DG, 77108DL |
| Autoxtra | AX901292P |
| BENDIX | PRT6257 |
| BRAKEBEST | 912034RGS, 981023R, 981023, 981023FZN |
| Brembo | 08.C423.11 |
| CENTRIC | 120.45085, 120.45085CRY, 121.45085, 126.45085SL, 126.45085SR, 127.45085L, 127.45085R, 128.45085L, 128.45085R, 227.45085L, 227.45085R, 320.45085 |
| Centric Parts | 120.45085, 120.45085CRY, 121.45085, 126.45085SL, 126.45085SR, 127.45085L, 127.45085R, 128.45085L, 128.45085R, 227.45085L, 227.45085R, 320.45085, 320.45085F |
| DURA CORP | BR901292 |
| DuraGo | BR901292 |
| Dynamic Friction Company | 600-80051 |
| MAGMA PRODUCTS | PMR363048 |
| MAZDA | GHT226251, GV9B26251A |
| NAPA BRAKES | SDK6761 |
| NEWTEK AUTOMOTIVE | R1292 |
| Newtek Automotive USA | R1292 |
| POWERSTOP | JBR1597EVC |
| PROMAX | 14-610007 |
| Qualis | 44788 |
| TopNotch | TN981023GEO |
| Ultra Brake | MA-8053 |
| WORLDPAC | 1407-507666, 1427-613654 |
| Wagner Brake | BD180655E |
| Winhere | 6612034 |
RAYBESTOS 981023R Fits Vehicles
- Mazda 6 (2014-2021)
