CENTRIC 125.65147 Part Description
Manufacturer
Product Description

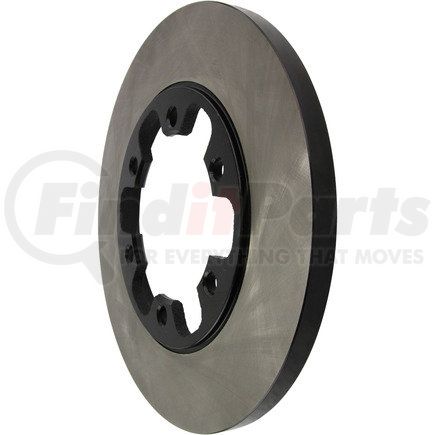

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
CENTRIC 125.65147 Specifications
Product Attributes
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Lbs | 15.500 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 7.071 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 179.600 |
| Weight [cntrc] Kgs | 7.020 |
| Discard Thickness | 15.000 MM |
| Discard Thickness | 0.591 IN |
| Nominal Thickness | 18.000 MM |
| Nominal Thickness | 0.709 IN |
| Hat Finish | Coated |
| Overall Height | 0.870 IN |
| Overall Height | 22.100 MM |
| Outside Diameter | 308.000 MM |
| Outside Diameter | 12.126 IN |
| Mounting Bolt Hole Quantity | 6 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 4.823 IN |
| Center Hole Diameter | 122.500 MM |
| Mounting Bolt Hole Circle Diameter | 148.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.827 IN |
| Mounting Bolt Hole Diameter | 13.800 MM |
| Mounting Bolt Hole Diameter | 0.543 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890460060 |
CENTRIC 125.65147 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 681790, 681790FZN, 681790R |
| N/A | 850361, E130-70-152, 42311, CK412A315BD, BRRF240, 90054229, 42311G, E13070152, 121.65147, CK4Z2C026D, 681790P |
CENTRIC 125.65147 Fits Vehicles
- Ford Transit-150 (2019-2023)
- Ford Transit-250 (2019-2023)
- Ford Transit-350 HD (2015-2023)
- Ford Transit-350 (2015-2023)
CENTRIC 125.65147 Cross References
We have 3 alternatives for the 125.65147 by CENTRIC:
