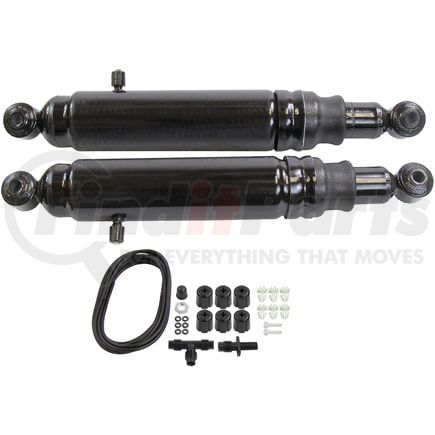

Name: Monroe MA836 Max-Air Air Adjustable Air Shock Absorber Pack of 2
SKU: ma836
Price: 134.49 USD
Availability: InStock

MONROE part description

Product Description

Max-Air Air Adjustable Air Shock Absorber Pack of 2

Features & Benefits

MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction

Product Attributes

Compressed Length	17.4 IN
Extended Length	29.26 in
Travel Length	11.86 in
9791	LS38
Lower Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.1/2" Sleeve OAL
Upper Mount Code	LS38
Upper Mount Type	Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 38.1MM Sleeve OAL
Dust Shield Included	No
9783	No
Hydraulic Lockout	No
Parts Pack(s)	None
Part Description	Air Shock Absorber
9908	No
Compressed Length	442 MM
Extended Length	743.2 MM
Travel Length	301.2 MM
Shock Absorber Body End Measuring Point	Center of Loop
Shock Absorber Rod End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598163059
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE MA836 Cross Reference

We have 2 alternatives for the MA836 by MONROE:

Fits Vehicles

Ford F-150 (2009-2014)
