Firestone W013589320 - 1T15M11 AIR SPRING
$39149
MSRP: $430.20
Save: $38.71
In stock
limited availability at this price!
FIRESTONE part description
Order Number: | W01-358-9320 |

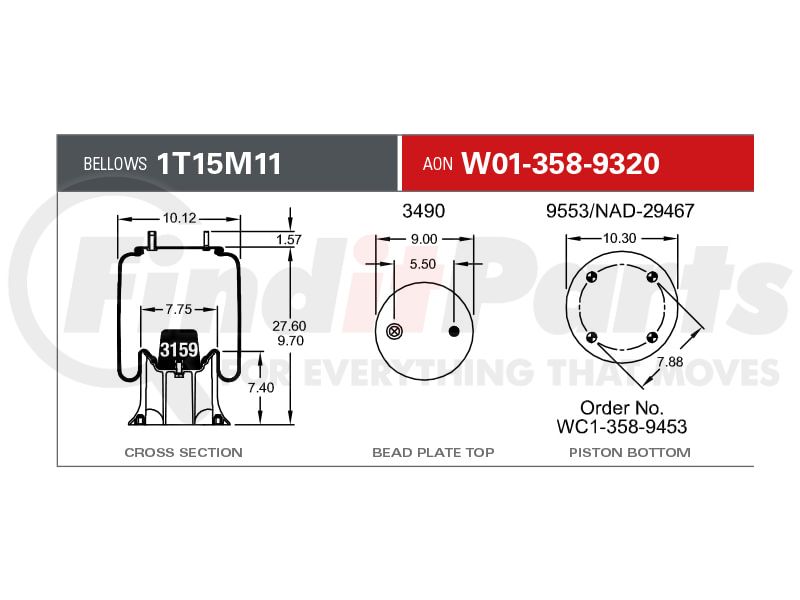

Bellows #: | 1T15M-11 |
Assembly Weight: | 17.3 lbs |
Design Height: | 16-20 inches |
Minimum Jounce Height: | 9.7 inches |
Maximum Rebound Height: | 26.8 inches |
Loading Capacity at 20 psig: | 1,470 lbsf |
Loading Capacity at 60 psig: | 4,410 lbsf |
Loading Capacity at 90 psig: | 6,615 lbsf |
Natural Frequency: | Hz |
Maximum Diameter: | 12.8 inches |
Material Type: | Natural Rubber |
Operating Temperature: | 57Cº to-54Cº |
Remarks: M-11 ON M-9 PISTON | |
TR: C-1044 |
FIRESTONE W013589320 Cross Reference
We have 25 alternatives for the W013589320 by FIRESTONE:
- TORQUE PARTS TR9320
- GOODYEAR 1R12363
- GOODYEAR 1R12663
- REYCO 2452001
- TRIANGLE 4399
- TRIANGLE 8360
- SAF-HOLLAND 90557099
- CONTITECH 91021P360
- W016759320
- W017559320
- 566243090
- 6373
- FIW013589320
- CONTINENTAL AG 1R12-663
- CONTITECH AS9320
- TRIANGLE SUSPENSION AS-8360
- MERITOR FS9320
- FIRESTONE 1T15M-11
- GOODYEAR BELLOWS 566-24-3-090
- GOODYEAR PART 1R12-363
- HOLLAND (NEWAY) 905-57-099
- PISTON 9553
- TOP PLATE 3490
- TRIANGLE BELLOWS 6373
- TRIANGLE PART 8360
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
