Name: Firestone W013585702 Air Suspension Spring
SKU: w013585702
Price: 339.49 USD
Availability: InStock

FIRESTONE part description

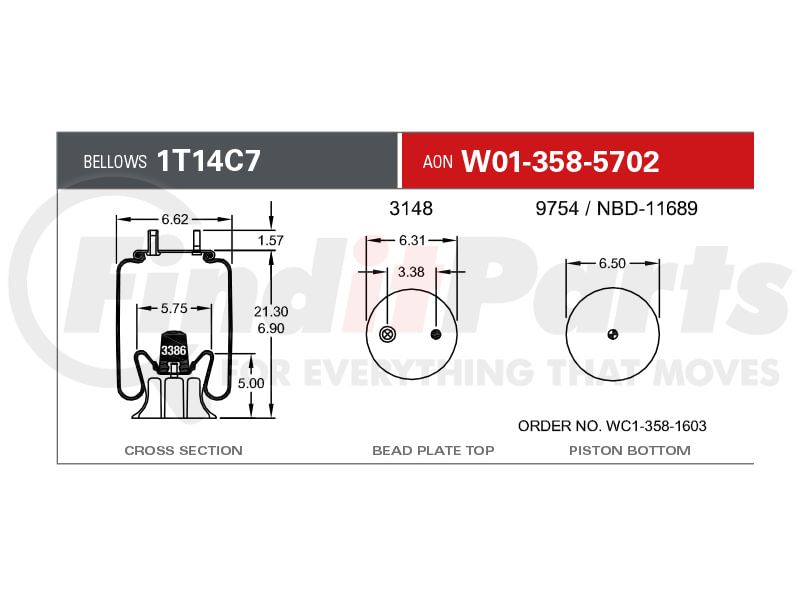

TECHNICAL DATA

Order Number: W01-358-5702
Bellows #: 1T14C-7
Assembly Weight: 10.3 lbs
Design Height: 12-13.5 inches
Minimum Jounce Height: 6.9 inches
Maximum Rebound Height: 19.16 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Natural Frequency: Hz
Maximum Diameter: 9.1 inches
Operating Temperature: 57Cº to-54Cº

Features & Benefits

9.1-inch diameter optimized for precise fit and function

Product Description

Air Bag

Features & Benefits

Supports a stable, controlled ride by absorbing road impact
Protects suspension components from excessive wear and damage
Operates at an ideal frequency for consistent performance
Reliable within a temperature range of 57 to 54 CE for stability in varying conditions
Keeps loads level to prevent shifting and imbalance
Improves handling and ride comfort for both short and long-haul applications
Essential component for vehicles carrying varying or heavy loads
9.1-inch diameter optimized for precise fit and function

Firestone Air Suspension Spring

A vehicle’s suspension takes on constant stress, whether carrying heavy loads or traveling long distances. The Firestone Air Suspension Spring absorbs that impact, distributing weight evenly to improve ride quality and vehicle stability. A proper suspension setup reduces wear on other components, keeping axles, shocks, and tires from experiencing unnecessary strain. Uneven loads and rough terrain cause damage over time, but the Firestone W013585702 helps counteract those forces, maintaining a level ride while extending the life of the suspension system.

Product Attributes

Diameter	9.1 IN
Frequency	Hz
Part Type	Air Bag
Temperature	57 to 54 CE

Part Interchanges

FIRESTONE W013585702 Cross Reference

We have 10 alternatives for the W013585702 by FIRESTONE:

Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
