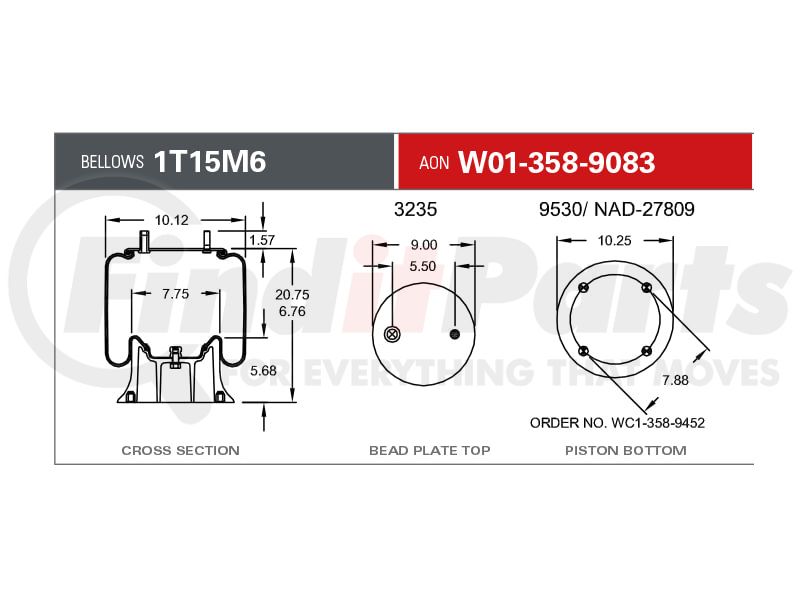

Firestone W013589083 - Air Spring - 20.75" Extended, 6.76" Compressed, 9.00" Wdith Top Plate, Reversible Sleeve
$27349
MSRP: $324.80
Save: $51.31
In stock
limited availability at this price!
FIRESTONE part description
TECHNICAL DATA -
Order Number: |
W01-358-9083 |
Bellows #: |
1T15M-6 |
Assembly Weight: |
13.2 lbs |
Design Height: |
12-14.5 inches |
Minimum Jounce Height: |
6.7 inches |
Maximum Rebound Height: |
20.3 inches |
Loading Capacity at 20 psig: |
1,420 lbsf |
Loading Capacity at 60 psig: |
4,260 lbsf |
Loading Capacity at 90 psig: |
6,390 lbsf |
Natural Frequency: |
Hz |
Maximum Diameter: |
12.7 inches |
Material Type: |
Natural Rubber |
Operating Temperature: |
57Cº to-54Cº |
Remarks: |
|
TR: C-2987 |
FIRESTONE W013589083 Cross Reference
We have 23 alternatives for the W013589083 by FIRESTONE:
- TORQUE PARTS TR9083
- GRANNING 1359
- HENDRICKSON S13042
- HENDRICKSON S1561
- GOODYEAR 1R12-066
- DAYTON PARTS 3529083
- CONTITECH 91016P333
- W014559093
- W016819083
- 566243038/048
- FIW013589083
- CONTITECH AS9083
- TRIANGLE SUSPENSION AS-8333
- MERITOR FS9083
- FIRESTONE 1T15M-6
- GOODYEAR BELLOWS 566-24-3-038
- GOODYEAR PART 1R12-066
- HENDRICKSON S-1561
- PISTON 9530
- RIDEWELL 1003589083C
- TOP PLATE 3235
- TRIANGLE BELLOWS 6363
- TRIANGLE PART 8333
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
