Firestone W013589371 - Airide Air Spring Reversible Sleeve 1T15MT-8
$21749
MSRP: $258.05
Save: $40.56
In stock
limited availability at this price!
FIRESTONE part description

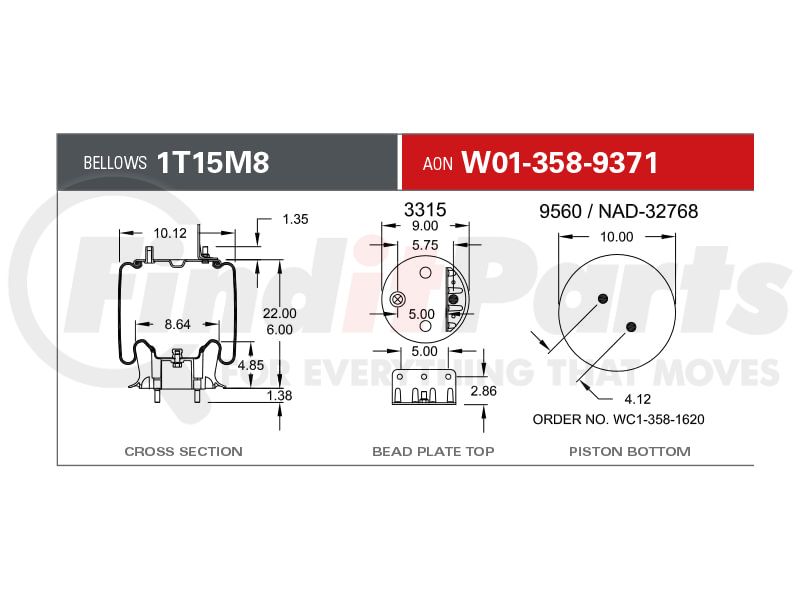

TECHNICAL DATA -
Order Number: |
W01-358-9371 |
Bellows #: |
1T15M-8 |
Assembly Weight: |
18 lbs |
Design Height: |
12.5-13.5 inches |
Minimum Jounce Height: |
5.9 inches |
Maximum Rebound Height: |
21.53 inches |
Loading Capacity at 20 psig: |
1,510 lbsf |
Loading Capacity at 60 psig: |
4,530 lbsf |
Loading Capacity at 90 psig: |
6,795 lbsf |
Natural Frequency: |
Hz |
Maximum Diameter: |
12.7 inches |
Material Type: |
N/A |
Operating Temperature: |
57Cº to-54Cº |
Remarks: |
|
TR: C-2096 |
FIRESTONE W013589371 Cross Reference
We have 32 alternatives for the W013589371 by FIRESTONE:
- TORQUE PARTS TR9371
- AS9371
- 1R12-401
- FIRESTONE 1T15M8
- GOODYEAR 1R12-401
- AIRTECH 39371 C
- NAVISTAR 1670043C1
- CONTITECH 1DK23L9371
- GOODYEAR 1S12244
- CONTITECH 910175P521
- CONTITECH 910185P521
- 566241000
- 566243038
- FIW013589371
- CONTITECH AS9371
- AIRTECH AIR SPRINGS 39371KPP
- CONTITECH AS9371
- TRIANGLE SUSPENSION AS-8521
- WORLD AMERICAN WA01-9371C
- MERITOR FS9371
- MERITOR MAF9371
- FIRESTONE 1T15MT-8
- GOODYEAR BELLOWS 566-24-1-000
- GOODYEAR BELLOWS 566-24-3-038
- GOODYEAR PART 1R12-401
- GOODYEAR PART 1S12-244
- NAVISTAR 1670043C-1
- NAVISTAR 1686386C-1
- PISTON 9560
- TOP PLATE 3315
- TRIANGLE BELLOWS 6391
- TRIANGLE PART 8521
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
