Firestone W013586897 - Airide Air Spring Double Convoluted 20
$15999
MSRP: $297.35
Save: $137.36
In stock
limited availability at this price!
FIRESTONE part description

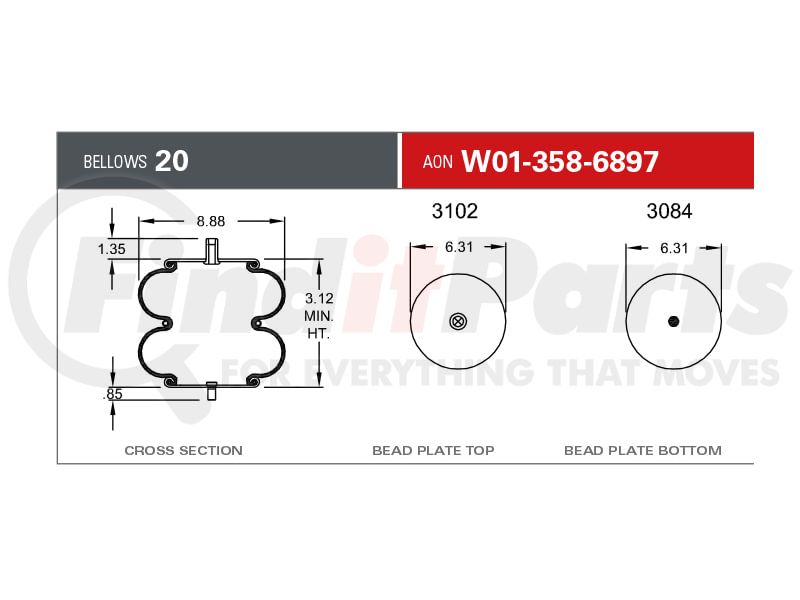

TECHNICAL DATA -
Order Number: | W01-358-6897 |
Bellows #: | 20 |
Assembly Weight: | N/A lbs |
Design Height: | 8-9 inches |
Minimum Jounce Height: | N/A inches |
Maximum Rebound Height: | N/A inches |
Loading Capacity at 20 psig: | 524 lbsf |
Loading Capacity at 60 psig: | 1,572 lbsf |
Loading Capacity at 90 psig: | 2,358 lbsf |
Natural Frequency: | Hz |
Maximum Diameter: | 9.9 inches |
Material Type: | N/A |
Operating Temperature: | 57Cº to-54Cº |
Remarks: | |
TR: 1820 |
FIRESTONE W013586897 Cross Reference
We have 43 alternatives for the W013586897 by FIRESTONE:
- TORQUE PARTS TR6897
- AS6897
- 2B-9229
- FIRESTONE 20F
- GOODYEAR 2B9-229
- RIDEWELL 1003586897C
- GOODYEAR 2B9228
- GOODYEAR 2B9229
- TRIANGLE 4505
- WATSON & CHALIN AS0058
- WATSON & CHALIN AS0058S
- CONTITECH FD20019505
- BRAKE & WHEEL M3528
- 161300
- 556238225
- 556238325
- 578923202
- 6325
- FIW013586897
- HD VALUE HDV6897
- CONTITECH AS6897
- HD VALUE HDV6897
- AIRTECH AIR SPRINGS W11-3026
- CONTITECH AS6897
- NAVISTAR FLT2B9229
- TRIANGLE SUSPENSION AS-4505
- WORLD AMERICAN WA01-6897C
- MERITOR FS6897
- MERITOR MAF6897
- STEMCO 2B9-229
- STEMCO 2B9-206
- STEMCO 2B9-210
- STEMCO 2B9-216
- STEMCO 2B9-218
- STEMCO 2B9-225
- FIRESTONE 20
- GOODYEAR BELLOWS 578-92-3-202
- GOODYEAR PART 2B9-229
- PISTON 8084
- TOP PLATE 3102
- TRIANGLE BELLOWS 6325
- TRIANGLE PART 4505
- NEWSTAR S-25065
Headquartered in Nashville, Tennessee, Firestone Industrial Products® is a proud manufacturer of air spring and other anti-vibration solutions to heavy duty trucks, trailers, commercial vehicles, rail cars, and industrial equipment. It has come a long way since it revolutionized transportation with the introduction of the Airide™ Air Spring in 1938. Today, Firestone is more than just an air spring manufacturer—it’s a global leader and a local partner that sees solutions where others see obstacles. Both OEMs and everyday consumers trust this brand for their air suspension needs because of its unwavering commitment to quality and reliability. All Firestone parts are engineered and tested in ISO-certified facilities to ensure they meet the strictest standards and customer specifications.
