Name: Webb 26531--3T 2653 ASSY L/FLGNUTS W/ABS
SKU: 265313t
Price: 644.49 USD
Availability: InStock

WEBB part description

HUB INFORMATION
Part Number: 26531--3T
Hub Number: 2653

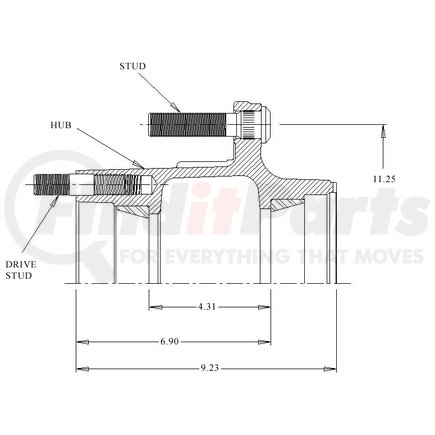

Description: 10 Stud Hub w/11.25 (285.75 MM) Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: Steel (Dual)
Wheel Stud: 101162
Stud Stand Out: 3.03
ABS Ring: Direct Machined ABS
Drum Options: 61577B, 61988B, 61991B, 66661B, 66864B, 66884B, 66800B, 66814B, 66854B, 66871B, 77864B
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5MM Serrated Stud
Outer Bearing Cup: 572
Outer Bearing Cone: 580
Inner Bearing Cup: 592A
Inner Bearing Cone: 598A or 594A
Webb Axle Group: 23
Cup Code: 1
Notes: Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. Add (.25) to these dimensions when using brake drums having (.25) b
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. Stud standout (cast drums).

WEBB 26531--3T Cross Reference

We have 2 alternatives for the 26531--3T by WEBB:
