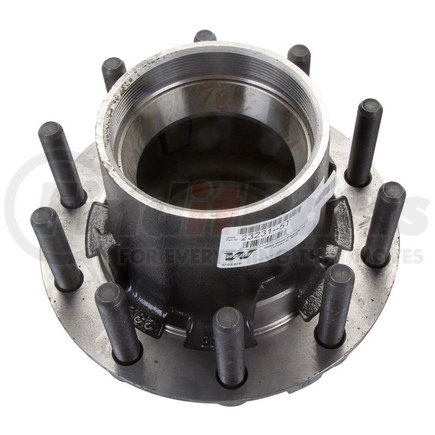

Name: Webb 23231--5T Propar ABS Hub 10-Stud Hp Screw On Cap
SKU: 232315t
Price: 404.49 USD
Availability: InStock

WEBB part description

HUB INFORMATION

Part Number	23231--5T
Hub Number	2323
Description	10 Stud Hub w/11.25 Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud
Hub Material	Cast
Mounting Type	FN
Drum Type	Outboard
Disc Wheel	Aluminum (Dual)
Wheel Stud	101160
Stud Stand Out	3.94
ABS Ring	Direct Machined ABS
Drum Options	61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B
Drum Type	Outboard
Number of Studs	10
Bolt Circle	11.25
Stud Description	M22 x 1.5MM Serrated Stud
Outer Bearing Cup	HM518410
Outer Bearing Cone	HM518445
Inner Bearing Cup	HM518410
Inner Bearing Cone	HM518445
Webb Axle Group	4
Cup Code	1
Notes	Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness. Add (.25) to these dimensions when using brake drums having This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset. This hub is approved for the "Super Single" Tire with 2.00 outset - Hub Dynamic Capacity is reduced to 11,000 lbs.

WEBB 23231--5T Cross Reference

We have 2 alternatives for the 23231--5T by WEBB:

In business since 1946, Webb® has been a trusted brand for high-quality brake and wheel hub components in the heavy duty transportation industry. The company maintains an extensive catalog of OEM and aftermarket brake drums, brake rotors and calipers, and wheel hubs for Class 6, 7, and 8 trucks and heavy duty trailers. Each Webb product is made of premium materials and engineered for reduced weight without compromising structural strength or balance. All parts are also manufactured using the latest innovations, including advanced wear indicators and cool running vent technology to help minimize wear and make maintenance and repairs easier. Combined with a first-class customer service and after-sales support, customers can count on Webb products to keep their trucks running safely and smoothly for years to come.
