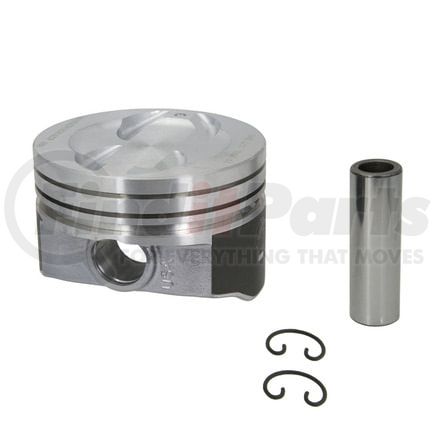

(888) 312-8812 Login SignupSEALED POWER H423DCP Sealed Power H423DCP Engine Piston Set
$3499
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
SEALED POWER H423DCP Part Description
Manufacturer
Product Description
Engine Piston Set
Features & Benefits
- Hypereutectic
- Made w/exclusive FM425 material for excellent strength & scuff resistance - allows tighter bore and improves sealing for less blow-by
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- Piston skirts protected by next-gen DUROSHIELD® coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
SEALED POWER H423DCP Specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.927 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.000 IN |
| Piston Material | Hypereutectic |
| Compression Height | 1.548 IN |
| Dome Volume CC | Negative 12.3 |
| Head Illustration | 29 |
| Head Type | 0.098 dish, 4 reliefs; Use w/Lock Ring LR-63; DUROSHIELD~ skirt coated piston |
| Lock Ring | Not Incl. |
| Minimum Clearance | 0.0010 |
| Part Description | Engine Piston |
| Pin Type | F |
| Pin Weight Gram | 149 |
| Weight W Pin Gram | 661 |
| Weight w/o Pin Gram | 512 |
| Grade Type | Premium |
| Grade Type | Premium |
| Piston Head Type | Dish |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00019826500762 |
SEALED POWER H423DCP Cross References
SEALED POWER H423DCP Fits Vehicles
- Pontiac Ventura (1977)
- Pontiac Phoenix (1977-1979)
- Pontiac LeMans (1976-1979)
- Pontiac Grand LeMans (1976-1979)
- Pontiac Firebird (1978-1979, 1987-1990)
- Oldsmobile Omega (1977-1979)
- Oldsmobile Delta 88 (1977)
- Oldsmobile Cutlass Supreme (1978)
- Oldsmobile Cutlass (1978-1979)
- Oldsmobile Custom Cruiser (1977)
- GMC Yukon (1992-1995)
- GMC V3500 (1987-1991)
- GMC V2500 Suburban (1987-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1991)
- GMC V1500 (1987)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1991)
- GMC R2500 (1987-1989)
- GMC R1500 Suburban (1987-1991)
- GMC R1500 (1987)
- GMC P3500 (1979-1996)
- GMC P35 (1975-1978)
- GMC P2500 (1979-1986, 1988-1989)
- GMC P25 (1975-1978)
- GMC K3500 (1979-1986, 1988-1995)
- GMC K35 (1977-1978)
- GMC K2500 Suburban (1979-1986, 1992-1995)
- GMC K25 Suburban (1975-1978)
- GMC K2500 (1979-1986, 1988-1995)
- GMC K25 (1975-1978)
- GMC K1500 Suburban (1979-1986, 1992-1995)
- GMC K15 Suburban (1975-1978)
- GMC K1500 (1979-1986, 1988-1995)
- GMC K15 (1975-1978)
- GMC G3500 (1979-1995)
- GMC G35 (1975-1978)
- GMC G2500 (1979-1995)
- GMC G25 (1975-1978)
- GMC G1500 (1979-1993)
- GMC G15 (1975-1978)
- GMC Caballero (1978-1979)
- GMC C3500 (1979-1986, 1988-1995)
- GMC C35 (1975-1978)
- GMC C2500 Suburban (1979-1986, 1992-1995)
- GMC C25 Suburban (1975-1978)
- GMC C2500 (1979-1986, 1988-1995)
- GMC C25 (1975-1978)
- GMC C1500 Suburban (1979-1986, 1992-1995)
- GMC C15 Suburban (1975-1978)
- GMC C1500 (1979-1986, 1988-1995)
- GMC C15 (1975-1978)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1989-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1989-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet Tahoe (1995)
- Chevrolet Townsman (1969-1972)
- Chevrolet P30 Van (1971-1974)
- Chevrolet P20 Van (1971-1974)
- Chevrolet P10 Van (1973)
- Chevrolet Kingswood (1969-1972)
- Chevrolet K30 Pickup (1971-1974)
- Chevrolet K20 Pickup (1971-1974)
- Chevrolet K10 Pickup (1971-1974)
- Chevrolet G30 Van (1971-1974)
- Chevrolet G20 Van (1971-1974)
- Chevrolet G10 Van (1971-1974)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1968-1973)
- Chevrolet C30 Pickup (1971-1974)
- Chevrolet C20 Pickup (1971-1974)
- Chevrolet C10 Pickup (1971-1974)
- Chevrolet Brookwood (1969-1972)
- Chevrolet Biscayne (1969-1972)
- Chevrolet W4500 Tiltmaster (1993-1995)
- GMC C3500HD (1991-1995)
- Chevrolet C3500HD (1991-1995)
- Pontiac Strato-Chief (1969-1970)
- Pontiac Laurentian (1969-1974, 1978-1979)
- Chevrolet Estate (1969-1970)
- Pontiac Beaumont (1968-1969)
- Pontiac Acadian (1968-1971)
- Pontiac Parisienne (1969-1974, 1976, 1978-1979)
- GMC Sprint (1971-1977)
- GMC P35/P3500 Van (1971-1974)
- GMC P25/P2500 Van (1971-1974)
- GMC K35/K3500 Pickup (1971-1974)
- GMC K25/K2500 Suburban (1971-1974)
- GMC K25/K2500 Pickup (1971-1974)
- GMC K15/K1500 Suburban (1971-1974)
- GMC K15/K1500 Pickup (1971-1974)
- GMC Jimmy (1971-1991)
- GMC G35/G3500 Van (1971-1974)
- GMC G25/G2500 Van (1971-1974)
- GMC G15/G1500 Van (1971-1974)
- GMC C35/C3500 Pickup (1971-1974)
- GMC C25/C2500 Suburban (1971-1974)
- GMC C25/C2500 Pickup (1971-1974)
- GMC C15/C1500 Suburban (1971-1974)
- GMC C15/C1500 Pickup (1971-1974)
- Chevrolet R3500 (1989-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1989-1991)
- Chevrolet R2500 (1989)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R1500 Suburban (1989-1991)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R10 (1987)
- Chevrolet P30 (1975-1995)
- Chevrolet P20 (1975-1989)
- Chevrolet P10 (1975, 1977-1978)
- Chevrolet Nova (1969-1979)
- Chevrolet Monte Carlo (1970-1977)
- Chevrolet Malibu (1973-1981)
- Chevrolet Laguna (1973-1976)
- Chevrolet K3500 (1988-1995)
- Chevrolet K30 (1977-1986)
- Chevrolet K2500 Suburban (1992-1995)
- Chevrolet K2500 (1988-1995)
- Chevrolet K20 Suburban (1971-1986)
- Chevrolet K20 (1975-1986)
- Chevrolet K1500 Suburban (1992-1995)
- Chevrolet K1500 (1988-1995)
- Chevrolet K10 Suburban (1971-1986)
- Chevrolet K10 (1975-1986)
- Chevrolet Impala (1969-1985)
- Chevrolet G30 (1975-1995)
- Chevrolet G20 (1975-1995)
- Chevrolet G10 (1975-1993)
- Chevrolet El Camino (1971-1979)
- Chevrolet Corvette (1969-1982, 1984-1990)
- Chevrolet Caprice (1969-1980, 1985-1990)
- Chevrolet Camaro (1967-1981, 1987-1990)
- Chevrolet C3500 (1988-1995)
- Chevrolet C30 (1975-1986)
- Chevrolet C2500 Suburban (1992-1995)
- Chevrolet C2500 (1988-1995)
- Chevrolet C20 Suburban (1971-1986)
- Chevrolet C20 (1975-1986)
- Chevrolet C1500 Suburban (1992-1995)
- Chevrolet C1500 (1988-1995)
- Chevrolet C10 Suburban (1971-1986)
- Chevrolet C10 (1975-1980, 1982-1986)
- Chevrolet K5 Blazer (1975-1986)
- Chevrolet Blazer (1971-1974, 1987-1994)
- Chevrolet Bel Air (1969-1975)
- Cadillac Brougham (1990)
- Buick Skylark (1977-1979)
- Buick Regal (1977)
- Buick Century (1977-1979)
