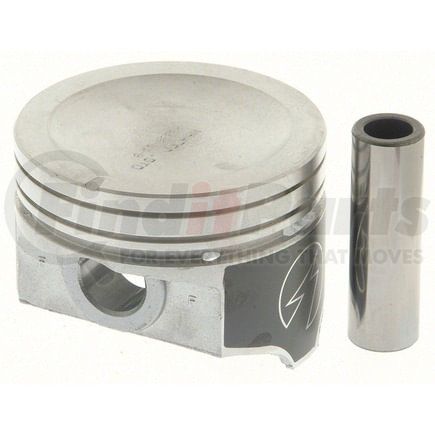

Sealed Power 502NP - Sealed Power 502NP Engine Piston Set
- Part Number
- 502NP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 502NP Engine Piston Set
details
$46792
Package Price for 8 Units
@ $58.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 2.00 MM |
| Second Compression Ring Thickness | 2.00 MM |
| Oil Ring Thickness | 4.00 MM |
| Piston Pin Outside Diameter | 0.8658 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.4646 IN |
| Piston Material | Cast Aluminum |
| 9607 | 1.630 IN |
| Head Illustration | 28 |
| Head Type | Recessed Head .161 deep x 2.125 dia. - 8.5:1 C.R. |
| Minimum Clearance | 0.001 @ 2.320 from top of head |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 88.0 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 21.991 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046899667 |
Part Interchanges
- 502NP
- Badger P547
- Badger P547-STD
- General Motors 1623538
- General Motors 1621703
- Clevite 91820
- Silvolite 1820
- Ertel 1166P
- Zollner Z8354
- Z8354 STD
- Dana Commercial Vehicle Service Parts TC2359
- Dana Commercial Vehicle Service Parts 224-2359
- Badger P547STD
- Sealed Power 9129PA
- Zollner Z8354STD
- Dana Commercial Vehicle Service Parts 2242359
Fits Vehicles
- Cadillac Seville (1982-1987)
- Cadillac Fleetwood (1982-1987)
- Cadillac Eldorado (1982-1987)
- Cadillac DeVille (1982-1987)
- Cadillac Commercial Chassis (1985-1987)
- Cadillac Allante (1987)
