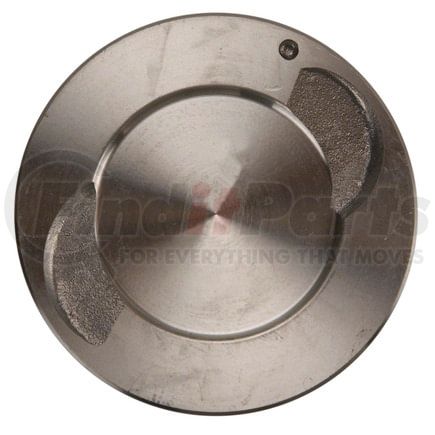

Sealed Power H865CP - Sealed Power H865CP Engine Piston Set
- Part Number
- H865CP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power H865CP Engine Piston Set
details
$13796
Package Price for 4 Units
@ $34.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD(R) skirt-coated piston
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 1.50 MM |
| Second Compression Ring Thickness | 1.50 MM |
| Oil Ring Thickness | 3.00 MM |
| Piston Pin Outside Diameter | 0.9126 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.7795 IN |
| Piston Material | Hypereutectic |
| 9607 | 1.200 IN |
| Head Illustration | 246 |
| Head Type | Recessed Head .088 deep x 2.350 dia.; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Pin Type | P |
| Weight W Pin Gram | 00501.+/- 00. |
| Bore Diameter | 96.0 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.18 MM |
Additional Information
| Country of Origin (Primary) | IN |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046657892 |
Part Interchanges
Fits Vehicles
- Ford Ranger (1998-2001)
