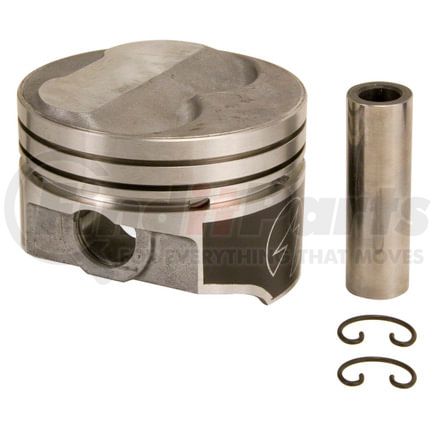

Sealed Power H618CP 30 - "Speed Pro" Engine Piston Cast Set
- Part Number
- H618CP 30
- Manufacturer
- SEALED POWER
- Description
-
"Speed Pro" Engine Piston Cast Set
details
$45192
Package Price for 8 Units
@ $56.49 per unit
In stock
limited availability at this price!
SEALED POWER part description
Product Description
Engine Piston Set
Application Summary
Performance Engine Performance Performance; 1980-1985 Chevrolet K5 Blazer; 1980-1985 Chevrolet C10; 1980-1985 Chevrolet C10 Suburban; 1980-1985 Chevrolet C20; 1980-1985 Chevrolet C20 Suburban; 1980-1985 Chevrolet C30; 1981 Chevrolet Camaro; 1985 Chevrolet Caprice; 1981-1985 Chevrolet Corvette; 1980-1985 Chevrolet G10; 1980-1985 Chevrolet G20; 1980-1985 Chevrolet G30; 1981-1985 Chevrolet Impala; 1980-1985 Chevrolet K10; 1980-1985 Chevrolet K10 Suburban; 1980-1985 Chevrolet K20; 1980-1985 Chevrolet K20 Suburban; 1980-1985 Chevrolet K30; 1981 Chevrolet Malibu; 1980-1985 Chevrolet P20; 1980-1985 Chevrolet P30; 1980-1985 GMC C1500; 1980-1985 GMC C1500 Suburban; 1980-1985 GMC C2500; 1980-1985 GMC C2500 Suburban; 1980-1985 GMC C3500; 1980-1985 GMC K1500; 1980-1985 GMC K1500 Suburban; 1980-1985 GMC K2500; 1980-1985 GMC K2500 Suburban; 1980-1985 GMC K3500; 1980-1985 GMC G1500; 1980-1985 GMC G2500; 1980-1985 GMC G3500; 1980-1985 GMC Jimmy; 1980-1985 GMC P2500; 1980-1985 GMC P3500
Features & Benefits
- Exclusive higher-strength FM-425 alloy with 16.5 percent silicon finely dispersed throughout the material
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
- Machined valve reliefs and circlip grooves; LR-63 lock rings for floated applications
Product Attributes
Oversized | Yes |
Top Compression Ring Thickness | 0.0781 IN |
Second Compression Ring Thickness | 0.0781 IN |
Oil Ring Thickness | 0.1875 IN |
Assembly Lubricant Included | No |
Bore Diameter | 4.030 IN |
Piston Material | Hypereutectic |
9607 | 1.560 IN |
Dome Volume CC | 3.5 |
Head Illustration | 135 |
Head Type | .125 dome, 2 reliefs; DUROSHIELD skirt coated piston |
Lock Ring | Included |
Minimum Clearance | .0010 |
Oversize Inch | .030 |
Part Description | Engine Piston |
Pin Diameter (Inch) | 0.927 |
Pin Type | F |
Pin Weight Gram | 159 |
Weight W Pin Gram | 755 |
Weight w/o Pin Gram | 596 |
Additional Information
Country of Origin (Primary) | IN |
Canadian Harmonizing Tariff Code | 8409910010 |
Harmonized Tariff Code (HTS) | 8409915085 |
UPC | 00614046228481 |
Fits Vehicles
- GMC P3500 (1980-1985)
- GMC P2500 (1980-1985)
- GMC K3500 (1980-1985)
- GMC K2500 Suburban (1980-1985)
- GMC K2500 (1980-1985)
- GMC K1500 Suburban (1980-1985)
- GMC K1500 (1980-1985)
- GMC Jimmy (1980-1985)
- GMC G3500 (1980-1985)
- GMC G2500 (1980-1985)
- GMC G1500 (1980-1985)
- GMC C3500 (1980-1985)
- GMC C2500 Suburban (1980-1985)
- GMC C2500 (1980-1985)
- GMC C1500 Suburban (1980-1985)
- GMC C1500 (1980-1985)
- Chevrolet P30 (1980-1985)
- Chevrolet P20 (1980-1985)
- Chevrolet Malibu (1981)
- Chevrolet K30 (1980-1985)
- Chevrolet K20 Suburban (1980-1985)
- Chevrolet K20 (1980-1985)
- Chevrolet K10 Suburban (1980-1985)
- Chevrolet K10 (1980-1985)
- Chevrolet Impala (1981-1985)
- Chevrolet G30 (1980-1985)
- Chevrolet G20 (1980-1985)
- Chevrolet G10 (1980-1985)
- Chevrolet Caprice (1985)
- Chevrolet Corvette (1981-1982, 1984-1985)
- Chevrolet Camaro (1981)
- Chevrolet C30 (1980-1985)
- Chevrolet C20 Suburban (1980-1985)
- Chevrolet C20 (1980-1985)
- Chevrolet C10 Suburban (1980-1985)
- Chevrolet C10 (1980, 1982-1985)
- Chevrolet K5 Blazer (1980-1985)
