Centric 122.66030 - Centric Premium Brake Drum
$20499
MSRP: $250.14
Save: $45.15
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

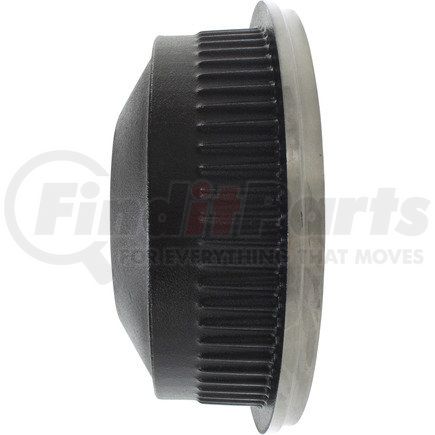

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Weight [cntrc] Kgs | 28.636 |
| Weight [cntrc] Lbs | 63.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 165.100 |
| Bolt Circle Diameter [cntrc] In | 6.500 |
| Hub Hole / Register [cntrc] Mm | 122.682 |
| Hub Hole / Register [cntrc] In | 4.830 |
| Height [cntrc] Mm | 160.274 |
| Height [cntrc] In | 6.310 |
| Friction Surface Width [cntrc] Mm | 100.330 |
| Friction Surface Width [cntrc] In | 3.950 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 332.500 MM |
| Maximum Brake Diameter (Discard) | 13.090 IN |
| Bolt Hole Quantity | 8 |
| Outside Diameter | 427.482 MM |
| Outside Diameter | 16.830 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 15.494 MM |
| Mounting Hole Diameter | 0.610 IN |
| Nominal Drum Diameter | 330.200 MM |
| Nominal Drum Diameter | 13.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890045861 |
Part Interchanges
- Raybestos Brakes 9531
- Raybestos Brakes 9531R
- BD125246
- BD125523
- E127-71-035
- 80000
- 80000G
- 119531
- 15650039
- 15650058
- 15693468
- 15693507
- 140619
- 201002
- 440-1663
- 4401663
- 6401663
- 1010
- AD8630
- D9423
- E12771035
- E9812
- E12311
- 87531
- 1408-25529
- YH140619
- 23062
- X21738
- BD1609
- 8844030
- 18B253
- 18B277
- 18B277A
- 177389
- 36547057
CENTRIC 122.66030 Cross Reference
We have 2 alternatives for the 122.66030 by CENTRIC:
Fits Vehicles
- GMC C3500HD (1996-2000)
- Workhorse P30 (2000-2005)
- GMC P3500 (1990-1999)
- GMC K3500 (1992-2000)
- GMC K2500 Suburban (1992-1999)
- GMC Savana 3500 (1996-2002)
- GMC G3500 (1992-1996)
- GMC Savana 2500 (1996-2002)
- GMC C3500 (1990-2000)
- GMC C2500 Suburban (1992-1999)
- GMC C1500 Suburban (1994-1996)
- Chevrolet Suburban 2500 (2000)
- Chevrolet P30 (1990-1999)
- Chevrolet K3500 (1992-2000)
- Chevrolet K2500 Suburban (1992-1999)
- Chevrolet G30 (1992-1996)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet C3500 (1990-2000)
- Chevrolet C2500 Suburban (1992-1999)
- Chevrolet C1500 Suburban (1994-1996)
