(888) 312-8812 Login SignupCENTRIC 122.63030 Centric Premium Brake Drum
Tap to view 4 more
$4549
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
CENTRIC 122.63030 Part Description
Manufacturer
Product Description

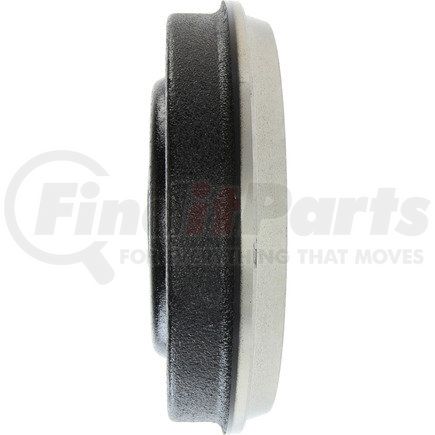

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.63030 Specifications
Product Attributes
| Weight [cntrc] Kgs | 3.182 |
| Weight [cntrc] Lbs | 7.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Height [cntrc] Mm | 61.214 |
| Height [cntrc] In | 2.410 |
| Friction Surface Width [cntrc] Mm | 41.148 |
| Friction Surface Width [cntrc] In | 1.620 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 201.200 MM |
| Maximum Brake Diameter (Discard) | 7.921 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 231.902 MM |
| Outside Diameter | 9.130 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.224 MM |
| Mounting Hole Diameter | 0.560 IN |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890045427 |
CENTRIC 122.63030 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 2913, 2913R |
| N/A | BD60785, E127-68-035, 63 91 590, 6391590, 8947, 112913, 8947G, 5273983, 5273983AB, 4313634, 4383655, 140558, 140678, 6401452, 827, AD8330, D2913, E12768035, 100760, 87265, 87601, YH140678, X21675, 23006, BD1471, 9601, 19512, 8832030, 68095, 36540016 |
CENTRIC 122.63030 Fits Vehicles
- Chrysler Shadow (1989-1994)
- Dodge SX 2.0 (2003-2005)
- Chrysler Neon (2000-2002)
- Chrysler Daytona (1990)
- Plymouth Sundance (1987-1994)
- Plymouth Reliant (1985-1989)
- Plymouth Neon (1995-2001)
- Dodge Shadow (1987-1994)
- Dodge Neon (1995-2005)
- Dodge Lancer (1985-1989)
- Dodge Daytona (1990)
- Dodge Aries (1985-1989)
- Chrysler LeBaron (1985-1989)
CENTRIC 122.63030 Cross References
We have 2 alternatives for the 122.63030 by CENTRIC:
