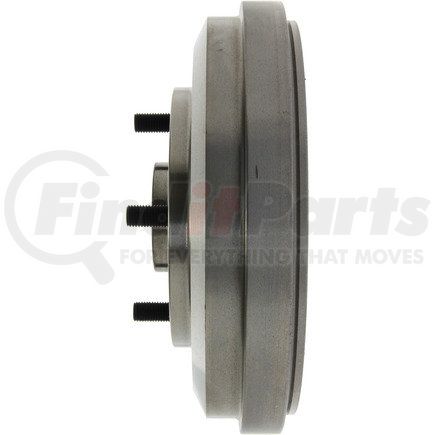

Centric 123.6105 - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
| Make | Ford |
| Model | Focus |
| Year | 2009 |
Product Description
C-Tek Standard Brake Drum
Application Summary
Ford Focus 2011-2009
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum
Product Attributes
| 132 | 12 MM |
| Maximum Brake Diameter (Discard) | 204.300 MM |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 240.000 MM |
| Outer Cooling Fins | No |
| Nominal Drum Diameter | 202.900 MM |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Friction Surface Width [cntrc] In | 1.772 |
| Friction Surface Width [cntrc] Mm | 45.000 |
| Height [cntrc] In | 3.201 |
| Height [cntrc] Mm | 81.305 |
| Hub Hole / Register [cntrc] In | 2.492 |
| Hub Hole / Register [cntrc] Mm | 63.300 |
| Mounting Type [cntrc] | Hub & Drum |
| Notes [cntrc] | Bearing Included |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Weight [cntrc] Kgs | 5.432 |
| Weight [cntrc] Lbs | 11.950 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890879367 |
CENTRIC 123.6105 Cross Reference
We have 2 alternatives for the 123.6105 by CENTRIC:
Fits Vehicles
- Ford Focus (2009-2011)
Formed in 2017, Centric® brings two of the industry’s leading undercar parts manufacturers, AP Emissions Technologies and Centric Brakes, under one brand. The merger combines more than 90 years’ worth of experience in aftermarket performance exhaust solutions with market leadership in brakes and chassis systems, resulting in an extensive portfolio of undercar components made available to distribution partners worldwide. From brake discs to catalytic converters, APC-Centric products make use of high-quality materials precision engineering to provide reliable performance at a reasonable cost to the customer. Also, as part of the larger APC Automotive Technologies group, APC-Centric has the competitive advantage of vertically-integrated supply chain and access to a global network of R&D, testing, and manufacturing facilities and customer support channels.
