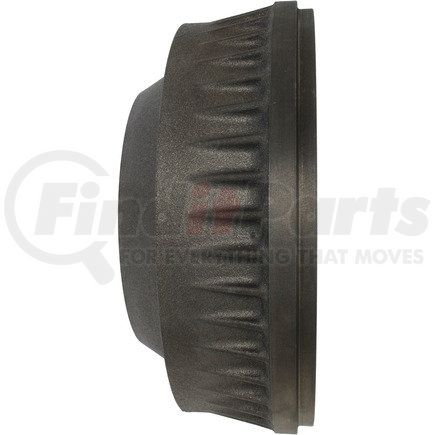

Centric 12362029 - C-Tek Standard Brake Drum
$9749
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 17.045 |
| Weight [cntrc] Lbs | 37.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 127.000 |
| Bolt Circle Diameter [cntrc] In | 5.000 |
| Hub Hole / Register [cntrc] Mm | 78.486 |
| Hub Hole / Register [cntrc] In | 3.090 |
| Height [cntrc] Mm | 135.128 |
| Height [cntrc] In | 5.320 |
| Friction Surface Width [cntrc] Mm | 81.280 |
| Friction Surface Width [cntrc] In | 3.200 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 285.500 MM |
| Maximum Brake Diameter (Discard) | 11.240 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 339.090 MM |
| Outside Diameter | 13.350 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 12.954 MM |
| Mounting Hole Diameter | 0.510 IN |
| Nominal Drum Diameter | 283.000 MM |
| Nominal Drum Diameter | 11.140 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890140641 |
Part Interchanges
Fits Vehicles
- Cadillac Commercial Chassis (1992)
- Cadillac Brougham (1991-1992)
