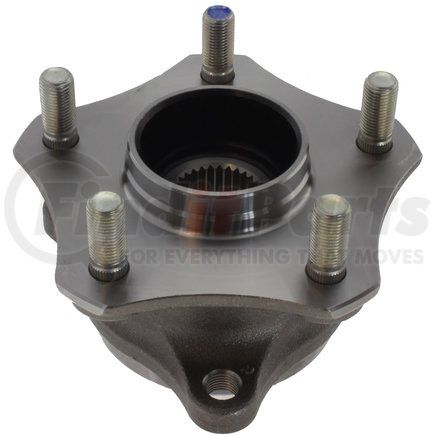

Centric 401.48000 - Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With ABS Tone Ring / Encoder
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Mounting Hole Qty [cntrc] | 3 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Inner Mount Pilot [cntrc] In | 3.540 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] Mm | 1.922 |
| Notes [cntrc] | Magnetic ABS Encoder |
| Off-set [cntrc] In | 48.820 |
| Inner Mount Pilot [cntrc] Mm | 89.920 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.250 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Spline Quantity | 31 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 59.700 MM |
| Wheel Pilot Diameter | 2.350 IN |
| Brake Pilot Diameter | 61.950 MM |
| Brake Pilot Diameter | 2.439 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.662 IN |
| Flange Diameter | 143.810 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890668633 |
Part Interchanges
Fits Vehicles
- Suzuki Kizashi (2010-2013)
