Name: Webb 20231--3T40 Hubb of 420231--3T
SKU: 202313t40
Price: 290.49 USD
Availability: InStock

WEBB part description

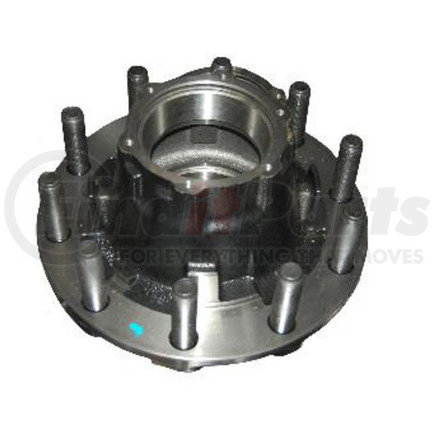

2023PT Boxed Hub includes hubs with ABS and bearing cups.

HUB INFORMATION
Part Number: 20231--3T
Hub Number: 2023
Description: 10 Stud Hub w/11.25 (285.75MM)Dia. Bolt Circle. Uses Outboard Drum (M22 x 1.5) Serrated Stud
Hub Material: Cast
Mounting Type: FN
Drum Type: Outboard
Disc Wheel: Steel (Dual)
Wheel Stud: 101162
Stud Stand Out: 3.03
ABS Ring: Direct Machined ABS
Drum Options: 61577F, 68985F, 66800F, 66864F, 66884F, 66814F, 66854F, 66871B
Drum Type: Outboard
Number of Studs: 10
Bolt Circle: 11.25
Stud Description: M22 x 1.5MM Serrated Stud
Outer Bearing Cup: HM212011
Outer Bearing Cone: HM212049
Inner Bearing Cup: HM218210
Inner Bearing Cone: HM218248
Webb Axle Group: 2
Cup Code: 1
Notes: Stud Standout (Cast drums): Dimensions shown are for brake drums having (.50) back plate thickness. Deduct (.06) from these dimensions when using brake drums having (.56) back plate thickness.
This hub designed for dual wheel mounting or single wheels with 1/2" maximum offset.
Grease Hubcap Kit: 73655.
