Name: Wagner BD125715E Wagner Brake BD125715E Disc Brake Rotor
SKU: bd125715e
Price: 98.99 USD
Availability: InStock

WAGNER part description

Product Description

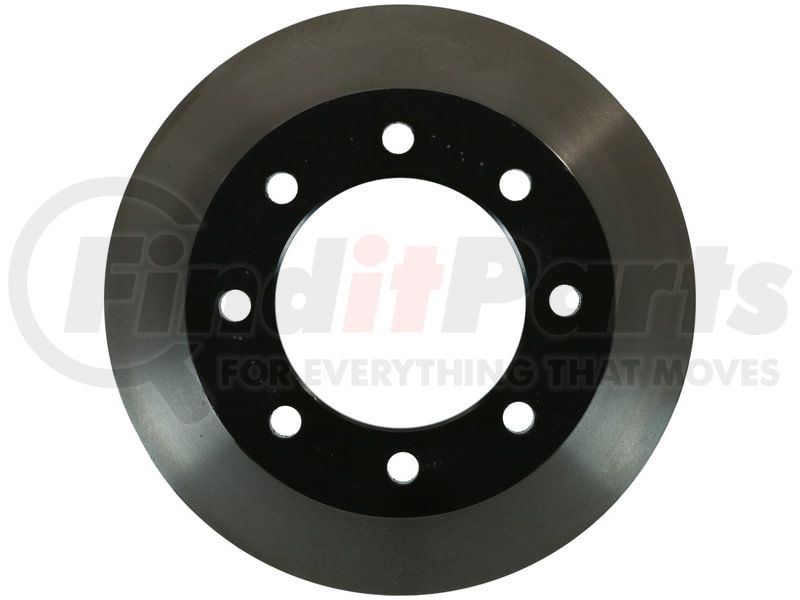

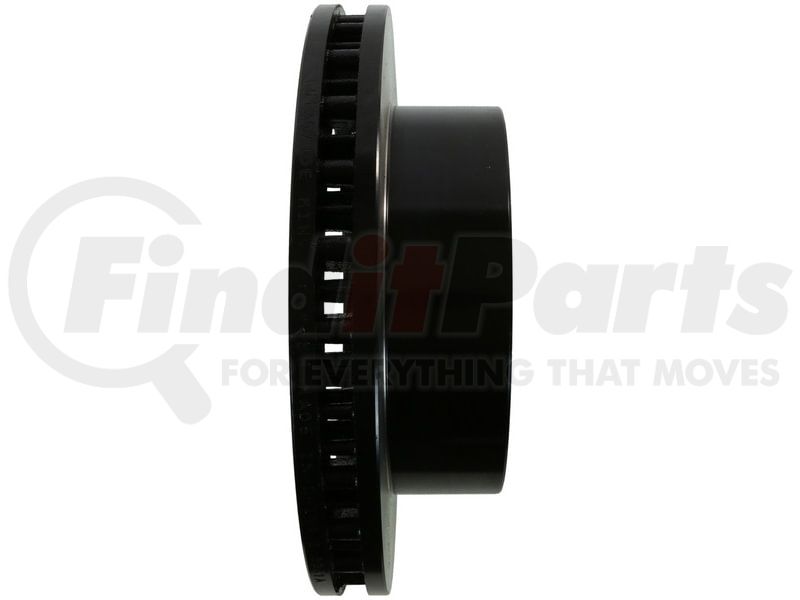

Disc Brake Rotor

Application Summary

2000-2005 Ford Excursion (Front) (Drive: 4WD / Qualifier: From 03/99, 8 Stud Wheel, with Custom Vane Design - Provides improved heat dissipation resulting in superior performance, with 331 (mm) Diameter Brake Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2004 Ford F-250 Super Duty (Front) (Drive: 4WD / Qualifier: From 03/99, with Mono Beam Suspension Option, 8 Stud Wheel, with Custom Vane Design - Provides improved heat dissipation resulting in superior performance, with 331 (mm) Diameter Brake Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion, with 4.10 Axle Ratio, with 4.30 Axle Ratio, 3.73 Ratio); 1999-2004 Ford F-350 Super Duty (Front) (Drive: 4WD / Qualifier: From 03/99, with 4.10 Axle Ratio, with 4.30 Axle Ratio, 3.73 Ratio, 8 Stud Wheel, with Custom Vane Design - Provides improved heat dissipation resulting in superior performance, with 331 (mm) Diameter Brake Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 1999-2004 Ford F-450 Super Duty (Front) (Drive: 4 X 4 / Qualifier: From 03/99, with 4.10 Axle Ratio, with 4.30 Axle Ratio, 3.73 Ratio, 8 Stud Wheel, with Custom Vane Design - Provides improved heat dissipation resulting in superior performance, with 331 (mm) Diameter Brake Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion); 2004 Ford F-550 Super Duty (Front) (Drive: 4 X 4 / Qualifier: 8 Stud Wheel, with Custom Vane Design - Provides improved heat dissipation resulting in superior performance, with 331 (mm) Diameter Brake Rotor, Black E-Coat on non-braking surface to prevent rust and corrosion)

Features & Benefits

ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance

Product Attributes

Material	Cast Iron
Nominal Thickness	37.8 MM
Disc Finish	Directional
Construction	Full Cast
Rust Resistant Coating	Yes
Outside Diameter	331.2 MM
Surface Type	Smooth
Solid Or Vented Type Rotor	Vented
Height	100.0 MM
Part Description	Disc Brake Rotor
Nominal Thickness	1.494 IN
Outside Diameter	13.040 IN
Height	3.937 in

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708305030
Harmonized Tariff Code (HTS)	8708305030
UPC	00008536710981
VMRS Code	013017001
UNSPSC	25171705

Part Interchanges

When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.

Fits Vehicles

Ford F-550 Super Duty (2004)
Ford F-450 Super Duty (1999-2004)
Ford F-350 Super Duty (1999-2004)
Ford F-250 Super Duty (1999-2004)
Ford Excursion (2000-2005)
