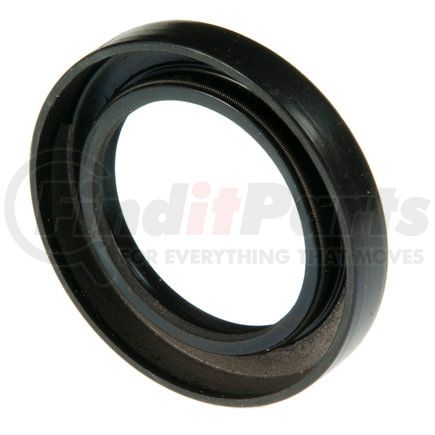

NATIONAL SEALS 710236 Part Description
Manufacturer
Product Description
Multi-Purpose Seal
Application Summary
2013-2015 Subaru WRX (Liter: 2.5, 2.0 & Engine(cc): 2458, 1998 & Engine(ci): 122 & Cylinder: 4 & Block: H & Bore(in): 3.92, 3.39 & Bore(mm): 99.5, 86.0 & Stroke(in): 3.11, 3.39 & Stroke(mm): 79.0, 86.0); 2013-2019 Subaru WRX STI (Liter: 2.5 & Engine(cc): 2458 & Cylinder: 4 & Block: H & Bore(in): 3.92 & Bore(mm): 99.5 & Stroke(in): 3.11 & Stroke(mm): 79.0); 2003-2006 Subaru Baja (Liter: 2.5 & Engine(cc): 2458 & Cylinder: 4 & Block: H & Bore(in): 3.92 & Bore(mm): 99.5 & Stroke(in): 3.11 & Stroke(mm): 79.0); 1998-2013 Subaru Forester (Liter: 2.5 & Engine(cc): 2458 & Cylinder: 4 & Block: H & Bore(in): 3.92 & Bore(mm): 99.5 & Stroke(in): 3.11 & Stroke(mm): 79.0); 1993-2014 Subaru Impreza (Liter: 1.8, 2.2, 2.5, 2.0 & Engine(cc): 1781, 2212, 2458, 1994 & Engine(ci): 122 & Cylinder: 4 & Block: H & Bore(in): 3.46, 3.82, 3.92, 3.62 & Bore(mm): 87.9, 96.9, 99.5, 92.0 & Stroke(in): 2.95, 3.11 & Stroke(mm): 75.0, 79.0); 1990-2012 Subaru Legacy (Liter: 2.2, 2.5 & Engine(cc): 2212, 2458 & Cylinder: 4 & Block: H & Bore(in): 3.82, 3.92 & Bore(mm): 96.9, 99.5 & Stroke(in): 2.95, 3.11 & Stroke(mm): 75.0, 79.0); 2000-2012 Subaru Outback (Liter: 2.5 & Engine(cc): 2458 & Cylinder: 4 & Block: H & Bore(in): 3.92 & Bore(mm): 99.5 & Stroke(in): 3.11 & Stroke(mm): 79.0); 1992-1997 Subaru SVX (Liter: 3.3 & Engine(cc): 3318 & Cylinder: 6 & Block: H & Bore(in): 3.82 & Bore(mm): 96.9 & Stroke(in): 2.95 & Stroke(mm): 75.0); 2005-2006 Saab 9-2X (Liter: 2.5, 2.0 & Engine(cc): 2458, 1994 & Cylinder: 4 & Block: H & Bore(in): 3.92, 3.62 & Bore(mm): 99.5, 92.0 & Stroke(in): 3.11, 2.95 & Stroke(mm): 79.0, 75.0)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -20°F to 300°F / -29°C to 49°C
- Temperature range: -20degF to 300degF / -29degC to 49degC
- Resistance to EP lubricants
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
NATIONAL SEALS 710236 Specifications
Product Attributes
| Inside Diameter | 1.299 IN |
| Inside Diameter | 33.000 MM |
| Outside Diameter | 1.938 IN |
| Outside Diameter | 49.230 MM |
| Width | 0.315 IN |
| Width | 8.000 MM |
| Material | Polyacrylate |
| Helix Type | Clockwise-Spiral Lip Design |
| Part Description | Oil Seal |
| Sealing Material | Polyacrylate |
| Series | 710200 |
| Thickness | 0.315 IN |
| Thickness | 8.000 MM |
| Type | 32 |
| Unit of Dimension | Metric |
| Housing Bore | 1.929 IN |
| Housing Bore | 49.000 MM |
| Shaft Diameter | 1.299 IN |
| Shaft Diameter | 33.000 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00724956294060 |
| VMRS Code | 053019003 |
NATIONAL SEALS 710236 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 052-3640 |
| Chicago Rawhide | 13427 |
| Corteco | 19036249B, 19036249 |
| Gates | KS13427 |
| Payen | NK-153, NA5226 |
| SKF | 13427 |
| Subaru | 8067-33010, 8067-33020, 8067-33030 |
| Timken | 710236 |
| Victor Reinz | 67209 |
NATIONAL SEALS 710236 Fits Vehicles
- Subaru SVX (1992-1997)
- Subaru WRX (2013-2015)
- Subaru WRX STI (2013-2019)
- Saab 9-2X (2005-2006)
- Subaru Outback (2000-2012)
- Subaru Legacy (1990-2012)
- Subaru Forester (1998-2013)
- Subaru Impreza (1993-2014)
- Subaru Baja (2003-2006)
