NATIONAL SEALS part description

Product Description

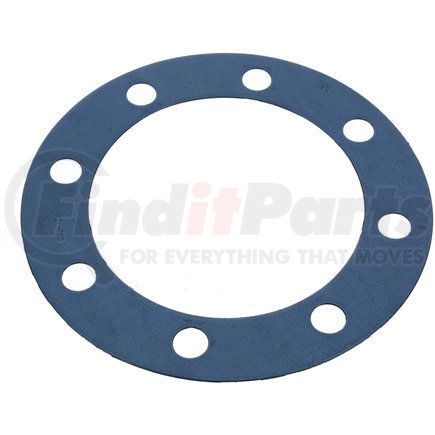

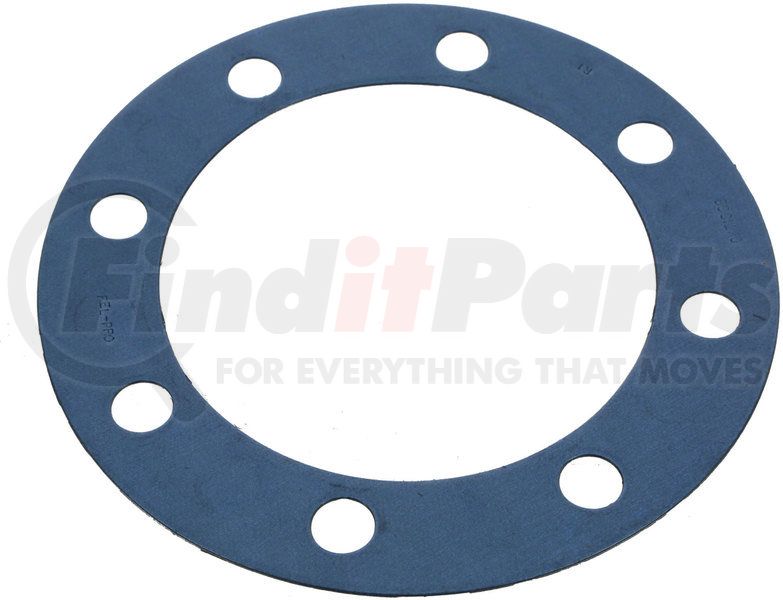

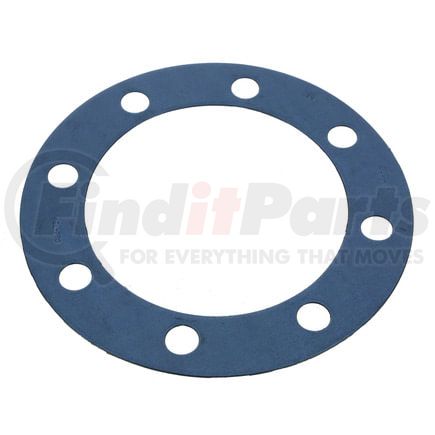

Drive Axle Shaft Flange Gasket

Application Summary

Eaton; Meritor RA

Features & Benefits

  • Unbeatable Protection for Wheel End Systems from the The Leader in Wheel End Technology™
  • National® axle flange gaskets feature Fel-Pro® sealing technology
  • National(R) axle flange gaskets feature Fel-Pro(R) sealing technology
  • Aramid fiber and PTFE coated gasket provides excellent fluid sealability and superior crush resistance
  • Anti-stick coating eliminates sticking & clean-up
  • Temperature Range: -400°F to 550°F; -240°C to 288°C
  • Temperature Range: -400degF to 550degF; -240degC to 288degC

Product Attributes

Bolt Hole Quantity 8
Outside Diameter 8.500 IN
Outside Diameter 215.9 MM
Inside Diameter 5.750 IN
Inside Diameter 146.1 MM
Shape Round
Material Laminated solid steel core
Part Description Axle Shaft Flange Gasket
Mounting Hole Diameter 0.672 IN
Mounting Hole Diameter 17.1 MM
Type 1
Bolt Circle Diameter 6.990 IN
Bolt Circle Diameter 177.5 mm
Grade Type Premium

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8484900000
Harmonized Tariff Code (HTS) 8484900000
Canadian Harmonizing Tariff Code 8484900000
UPC 00614046946910

Part Interchanges
