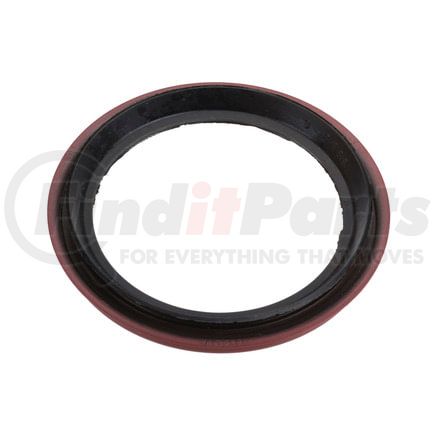

Name: National Seals 3553 National 3553 Multi-Purpose Seal
SKU: 3553
Price: 11.99 USD
Availability: InStock

NATIONAL SEALS part description

Product Description

Multi-Purpose Seal

Application Summary

1998-2000 Isuzu Hombre (Front) (Drive: 4WD); 1979-1985 Buick Riviera (Front); 1979-1985 Cadillac Eldorado (Front); 1980-1985 Cadillac Seville (Front); 1995-2005 Chevrolet Blazer (Front) (Drive: 4WD, RWD); 1983-1994 Chevrolet S10 Blazer (Front) (Drive: 4WD); 1983-2004 Chevrolet S10 (Front) (Drive: 4WD); 1992-2001 GMC Jimmy (Front) (Drive: 4WD); 1983-1991 GMC S15 Jimmy (Front) (Drive: 4WD); 1983-1990 GMC S15 (Front) (Drive: 4WD); 1991-2004 GMC Sonoma (Front) (Drive: 4WD); 1991 GMC Syclone (Front); 1992-1993 GMC Typhoon (Front); 1991-2001 Oldsmobile Bravada (Front); 1979-1985 Oldsmobile Toronado (Front); 1980-1988 American Motors Eagle (Front) (Qualifier: with Spicer 30 Axle(s), with 7.125 (in) Ring Gear, Independent Front Suspension)

Features & Benefits

Design type: springless; multi-lip
Temperature range: -40°F to 225°F / -40°C to 107°C
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter	2.201 IN
Inside Diameter	55.910 MM
Outside Diameter	2.741 IN
Outside Diameter	69.620 MM
Width	0.197 IN
Width	5.000 MM
Material	Nitrile
Part Description	Oil Seal
Redicoat	Yes
Sealing Material	Nitrile
Series	3000
Thickness	0.197 IN
Thickness	5.000 MM
Type	284
Unit of Dimension	Inch
Housing Bore	2.735 IN
Housing Bore	69.470 MM
Shaft Diameter	2.201 IN
Shaft Diameter	55.910 MM
Flanged Outside Diameter	2.913 in
Flanged Outside Diameter	73.990 mm
Overall Width with Side Lip	9.677 MM
Overall Width with Side Lip	0.381 in
Grade Type	Premium

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
Canadian Harmonizing Tariff Code	4016930000
UPC	00724956103874

Part Interchanges

Fits Vehicles

Oldsmobile Toronado (1979-1985)
Oldsmobile Bravada (1991-1994, 1996-2001)
GMC Typhoon (1992-1993)
GMC Syclone (1991)
GMC S15 (1983-1990)
GMC Jimmy (1992-2001)
GMC S15 Jimmy (1983-1991)
Chevrolet S10 Blazer (1983-1994)
Cadillac Seville (1980-1985)
Cadillac Eldorado (1979-1985)
Buick Riviera (1979-1985)
Isuzu Hombre (1998-2000)
GMC Sonoma (1991-2004)
Chevrolet S10 (1983-2004)
Chevrolet Blazer (1995-2005)
American Motors Eagle (1980-1988)
