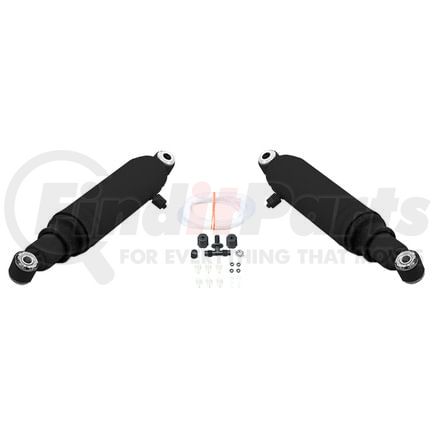

Name: Monroe MA773 Max-Air Air Adjustable Air Shock Absorber Pack of 2
SKU: ma773
Price: 126.99 USD
Availability: InStock

MONROE part description

Product Description

Max-Air Air Adjustable Air Shock Absorber Pack of 2

Features & Benefits

MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction

Product Attributes

Compressed Length	13.5 IN
Extended Length	21.75 in
Travel Length	8.25 in
9791	LS26
Lower Mount Type	Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Upper Mount Code	L1
Upper Mount Type	Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Dust Shield Included	Yes
Dust Shield Material	Rubber
9783	Yes
Hydraulic Lockout	No
Parts Pack(s)	None
Part Description	Air Shock Absorber
9908	Yes
Compressed Length	342.9 MM
Extended Length	552.4 MM
Travel Length	209.5 MM
Shock Absorber Body End Measuring Point	Center of Loop
Shock Absorber Rod End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598031501
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE MA773 Cross Reference

We have 3 alternatives for the MA773 by MONROE:

Fits Vehicles

Ford F-150 (1980-1984)
Ford F-100 (1980-1983)
Ford Bronco (1980-1996)
Jeep Grand Cherokee (1993-1998)
