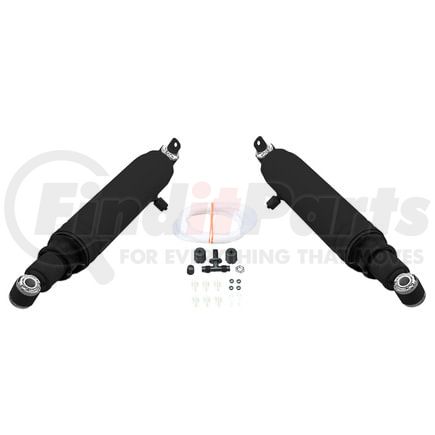

Monroe MA764 - Max-Air Air Adjustable Air Shock Absorber Pack of 2
$9299
MSRP: $187.24
Save: $94.25
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Max-Air Air Adjustable Air Shock Absorber Pack of 2
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
Product Attributes
Compressed Length | 15.875 IN |
Extended Length | 27.125 in |
Travel Length | 11.25 in |
9791 | LS47 |
Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
Upper Mount Code | XP7 |
Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
Dust Shield Included | Yes |
Dust Shield Material | Rubber |
9783 | Yes |
Hydraulic Lockout | No |
Parts Pack(s) | None |
Part Description | Air Shock Absorber |
9908 | No |
Compressed Length | 403.2 MM |
Extended Length | 689 MM |
Travel Length | 285.8 MM |
Shock Absorber Body End Measuring Point | Center of Loop |
Shock Absorber Rod End Measuring Point | Center of Cross Pin |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598031334 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- Chevrolet 12474701
- Chevrolet 12474703
- Chevrolet 12474903
- Chevrolet 15002527
- Chevrolet 15021581
- Chevrolet 15032315
- Chevrolet 15718077
- Chevrolet 22046804
- Chevrolet 22064206
- Chevrolet 22064224
- Chevrolet 22064332
- Chevrolet 22064333
- Chevrolet 22064452
- Chevrolet 22064460
- Chevrolet 22064461
- Chevrolet 22064633
- Chevrolet 22064634
- Chevrolet 22064635
- Chevrolet 22064636
- Chevrolet 22064637
- Chevrolet 22064638
- Chevrolet 22064639
- Chevrolet 22064829
- Chevrolet 22064830
- Chevrolet 22064831
- Chevrolet 22064835
- Chevrolet 22064838
- Chevrolet 22064839
- Chevrolet 22065212
- Chevrolet 22065237
- Chevrolet 88945332
- Chevrolet 88945357
- Chevrolet 88945391
- Chevrolet 88945870
- Chevrolet 88945885
- Chevrolet 88945886
- Chevrolet 88945887
- Chevrolet 88945967
- Chevrolet 88945983
- Chevrolet 88945994
- Chevrolet 88946059
- Chevrolet 88946581
- Chevrolet 88946627
- GMC 12474701
- GMC 12474703
- GMC 12474903
- GMC 15002527
- GMC 15021581
- GMC 15032315
- GMC 15718077
- GMC 22046804
- GMC 22064206
- GMC 22064224
- GMC 22064332
- GMC 22064333
- GMC 22064452
- GMC 22064460
- GMC 22064461
- GMC 22064633
- GMC 22064634
- GMC 22064635
- GMC 22064636
- GMC 22064637
- GMC 22064638
- GMC 22064639
- GMC 22064829
- GMC 22064830
- GMC 22064831
- GMC 22064835
- GMC 22064838
- GMC 22064839
- GMC 22065212
- GMC 22065237
- GMC 88945332
- GMC 88945357
- GMC 88945391
- GMC 88945870
- GMC 88945885
- GMC 88945886
- GMC 88945887
- GMC 88945967
- GMC 88945983
- GMC 88945994
- GMC 88946059
- GMC 88946581
- GMC 88946627
- Gabriel 49218
- ACDelco 504539
- NAPA Shocks MA764
MONROE MA764 Cross Reference
We have 3 alternatives for the MA764 by MONROE:
Fits Vehicles
- GMC K2500 (1988-2000)
- GMC K1500 (1988-1999)
- GMC C2500 (1988-2000)
- GMC C1500 (1988-1999)
- Chevrolet K2500 (1988-2000)
- Chevrolet K1500 (1988-1999)
- Chevrolet C2500 (1988-2000)
- Chevrolet C1500 (1988-1999)
