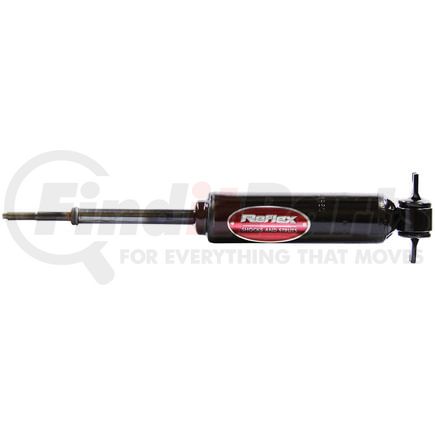

Name: Monroe 911096 Reflex Suspension Shock Absorber
SKU: 911096
Price: 55.49 USD
Availability: InStock

MONROE part description

Product Description

Reflex Suspension Shock Absorber

Features & Benefits

IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Product Attributes

9791	XP8
9789	S4
Dust Shield Included	No
9783	No
9908	No
9792	No
Part Description	Shock Absorber
Compressed Length	9 IN
Extended Length	13.75 in
Gas Charged	Yes
Lower Mount Type	Cross Pin Mount - Open Ended, 5/16" Hole ID (Both Ends) X 3" Pin Length (Hole Center to Center)
Parts Pack(s)	P01135
Travel Length	4.75 in
Upper Mount Type	Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length	228.6 MM
Extended Length	349.3 MM
Travel Length	120.6 MM
Shock Absorber Rod End Measuring Point	Base of Stem
Shock Absorber Body End Measuring Point	Center of Mounting Hole

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598840646
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 911096 Cross Reference

We have 5 alternatives for the 911096 by MONROE:

Fits Vehicles

Dodge B300 Van (1971-1974)
Dodge B200 Van (1971-1974)
Dodge B100 Van (1971-1974)
Dodge Ram 3500 Van (1996-2003)
Dodge Ram 2500 Van (1996-2003)
Dodge Ram 1500 Van (1995-2003)
Dodge B3500 (1995-1998)
Dodge B350 (1981-1994)
Dodge B300 (1975-1980)
Dodge B2500 (1995-1998)
Dodge B250 (1981-1994)
Dodge B200 (1975-1980)
Dodge B1500 (1995-1998)
Dodge B150 (1981-1994)
Dodge B100 (1975-1980)
