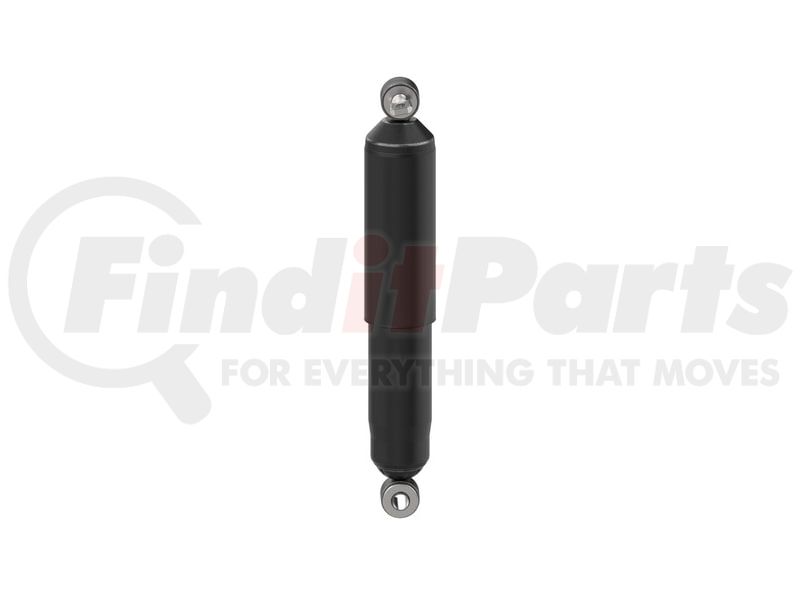

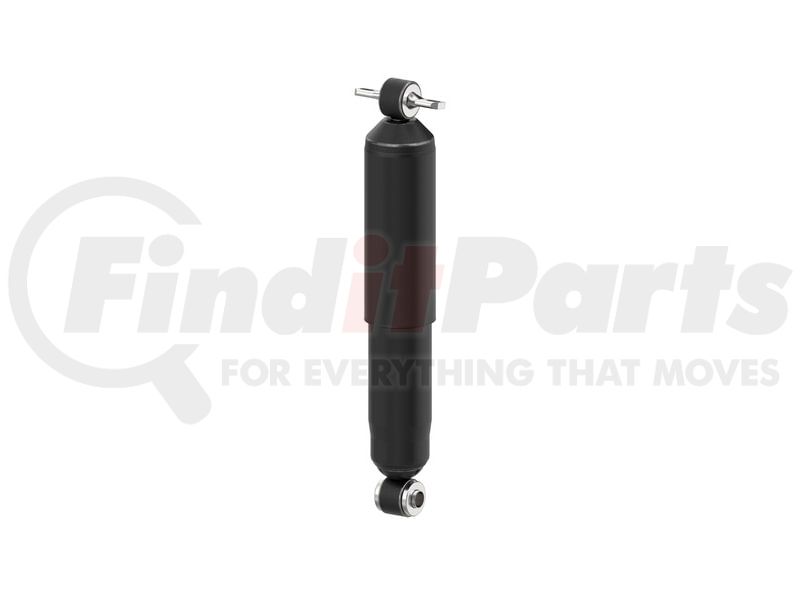

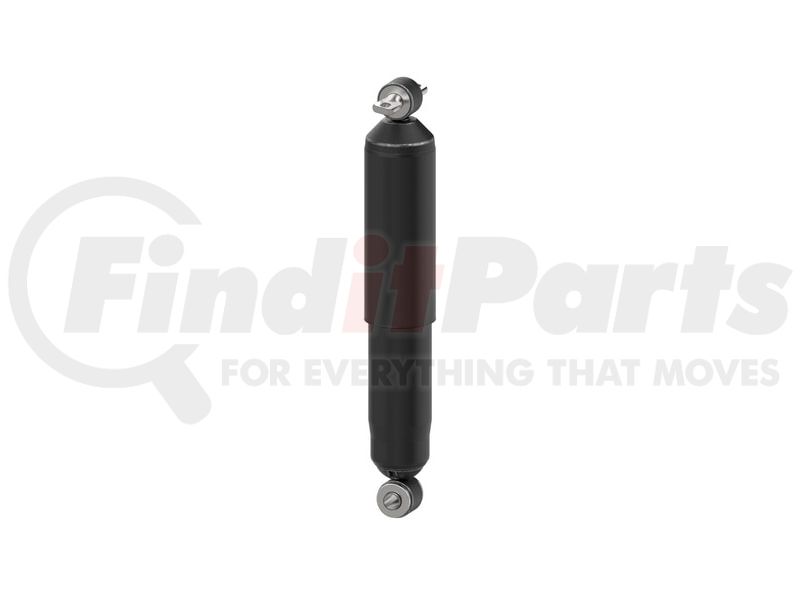

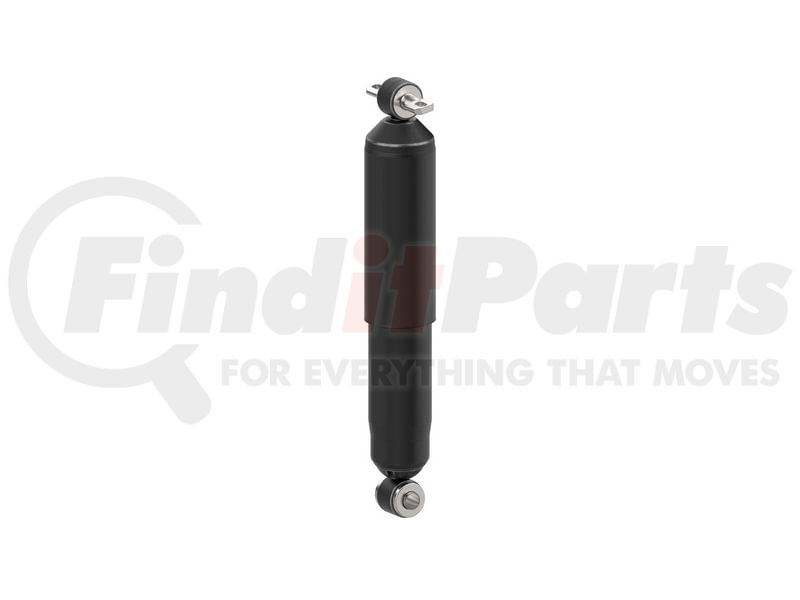

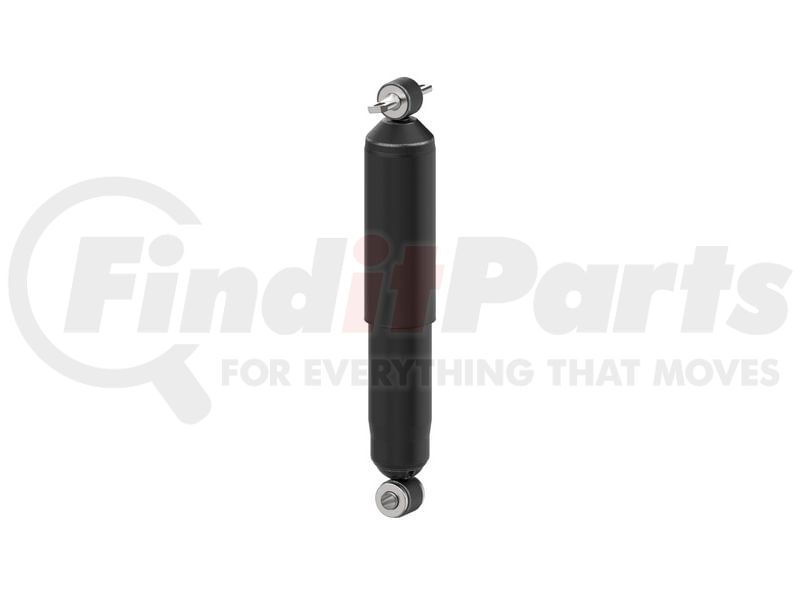

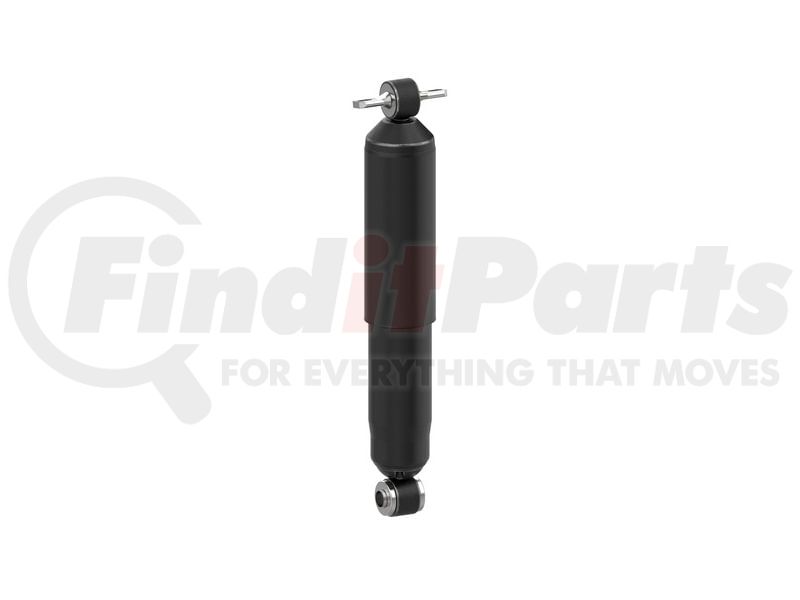

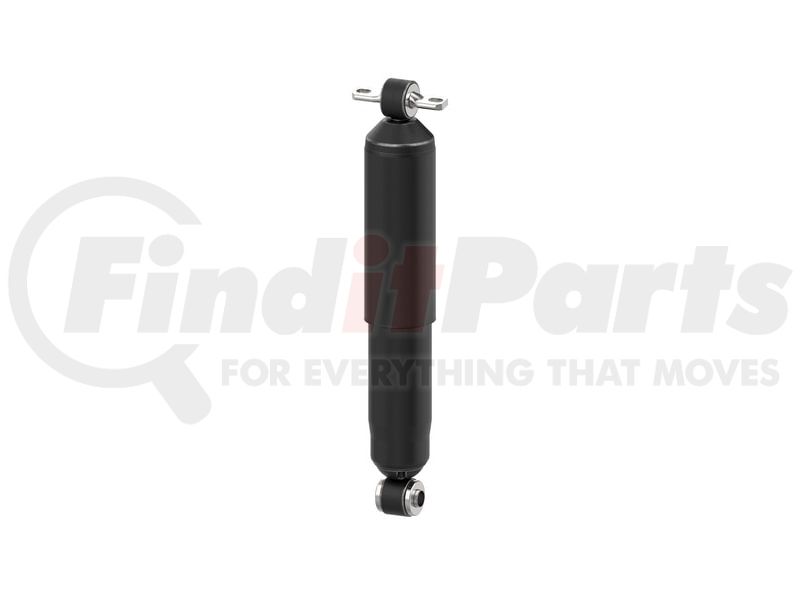

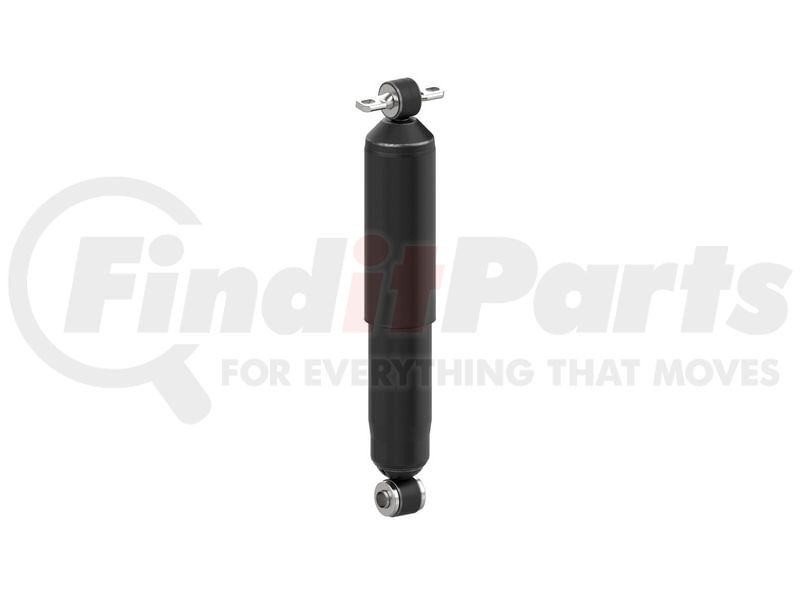

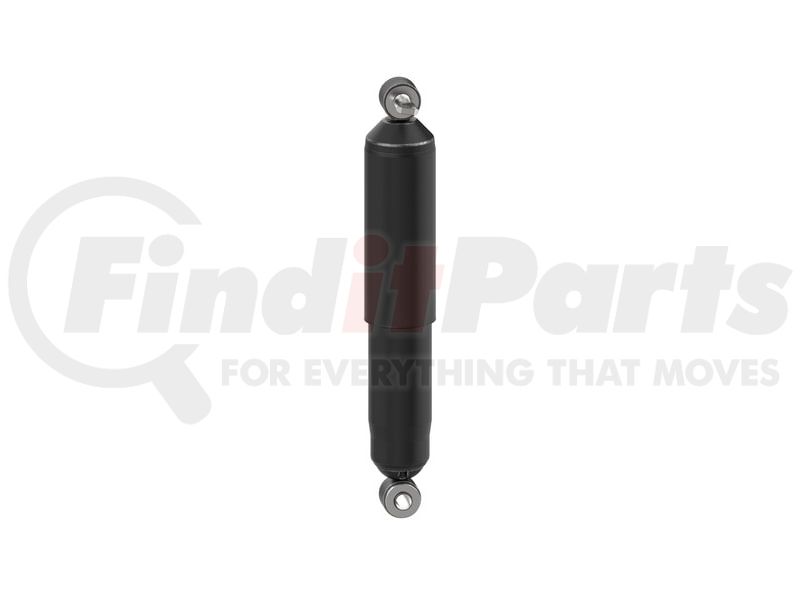

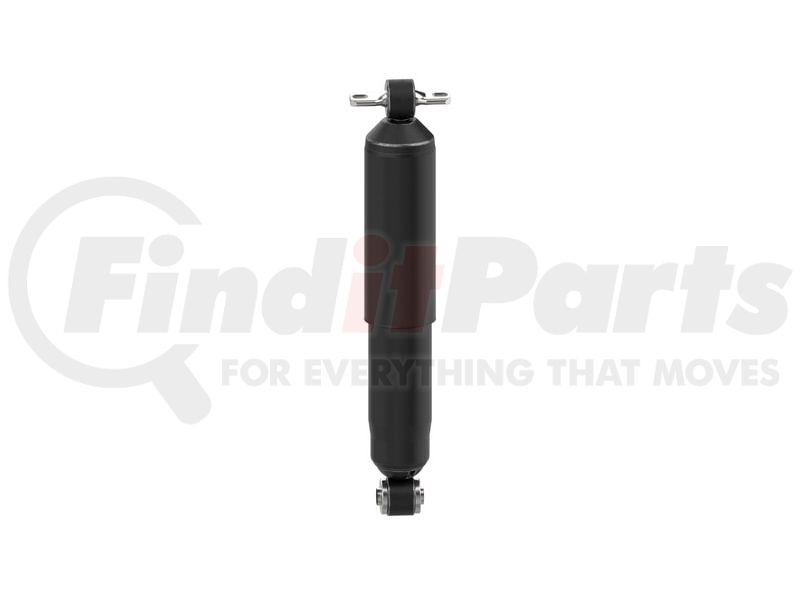

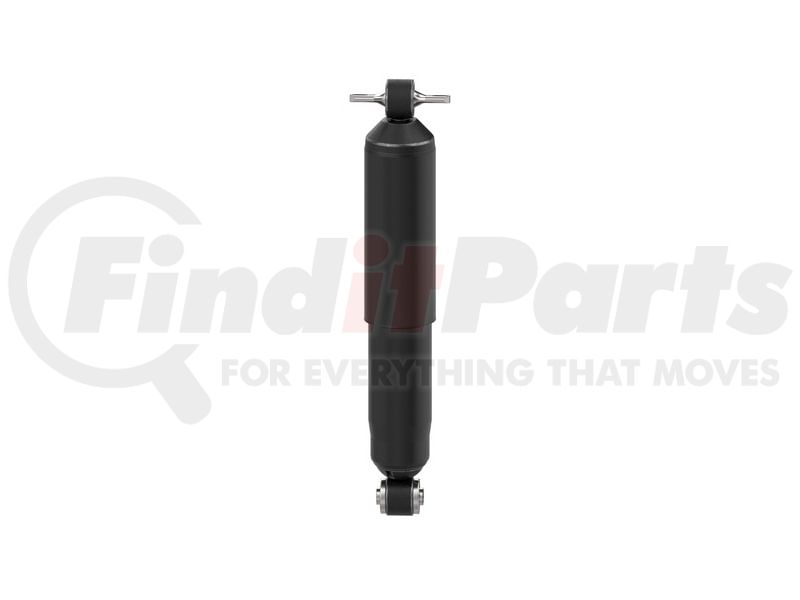

Monroe 911086 - Reflex Suspension Shock Absorber
$4899
MSRP: $98.22
Save: $49.23
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Reflex Suspension Shock Absorber
Features & Benefits
- IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
- EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
- CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
- CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
- IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
- BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Product Attributes
9791 | LS47 |
9789 | XP7 |
Dust Shield Included | Yes |
9783 | No |
9908 | Yes |
9792 | No |
Part Description | Shock Absorber |
Compressed Length | 14.75 IN |
Dust Shield Material | Metal |
Extended Length | 23.75 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
Parts Pack(s) | None |
Travel Length | 9 in |
Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
Compressed Length | 374.7 MM |
Extended Length | 603.3 MM |
Travel Length | 228.6 MM |
Shock Absorber Rod End Measuring Point | Center of Cross Pin |
Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598840028 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- Chevrolet 12474702
- Chevrolet 12474704
- Chevrolet 12474705
- Chevrolet 12474709
- Chevrolet 12474710
- Chevrolet 12474711
- Chevrolet 12474712
- Chevrolet 12474719
- Chevrolet 12474720
- Chevrolet 12474906
- Chevrolet 15002528
- Chevrolet 15002529
- Chevrolet 15150925
- Chevrolet 15150926
- Chevrolet 15150928
- Chevrolet 15150929
- Chevrolet 15150931
- Chevrolet 15150933
- Chevrolet 15152942
- Chevrolet 15152943
- Chevrolet 15152944
- Chevrolet 15152947
- Chevrolet 15152948
- Chevrolet 15718076
- Chevrolet 15720387
- Chevrolet 15727198
- Chevrolet 15727199
- Chevrolet 15735786
- Chevrolet 15741932
- Chevrolet 15742099
- Chevrolet 15991799
- Chevrolet 15991800
- Chevrolet 15991801
- Chevrolet 15991802
- Chevrolet 15991803
- Chevrolet 15991804
- Chevrolet 19257310
- Chevrolet 20956377
- Chevrolet 20956378
- Chevrolet 20956379
- Chevrolet 20956380
- Chevrolet 22064418
- Chevrolet 22064647
- Chevrolet 22064652
- Chevrolet 22064653
- Chevrolet 22064655
- Chevrolet 22064678
- Chevrolet 22064679
- Chevrolet 22064683
- Chevrolet 22064684
- Chevrolet 22064685
- Chevrolet 22064686
- Chevrolet 22064697
- Chevrolet 22064698
- Chevrolet 22064699
- Chevrolet 22064800
- Chevrolet 22064801
- Chevrolet 22064841
- Chevrolet 22065093
- Chevrolet 23296352
- Chevrolet 23296353
- Chevrolet 25751135
- Chevrolet 25751136
- Chevrolet 25751137
- Chevrolet 25751138
- Chevrolet 25856173
- Chevrolet 25856175
- Chevrolet 84020664
- Chevrolet 84020665
- Chevrolet 84020666
- Chevrolet 84020667
- Chevrolet 84020668
- Chevrolet 84020673
- Chevrolet 84040778
- Chevrolet 84040779
- Chevrolet 84040780
- Chevrolet 84301663
- Chevrolet 84301664
- Chevrolet 84301665
- Chevrolet 84303233
- Chevrolet 84303234
- Chevrolet 88945302
- Chevrolet 88945315
- Chevrolet 88982650
- Chevrolet 88982652
- GMC 12474704
- GMC 12474705
- GMC 12474709
- GMC 12474710
- GMC 12474711
- GMC 12474712
- GMC 12474720
- GMC 15002529
- GMC 15150925
- GMC 15150926
- GMC 15150928
- GMC 15150931
- GMC 15150933
- GMC 15152943
- GMC 15152944
- GMC 15152947
- GMC 15152948
- GMC 15720387
- GMC 15727198
- GMC 15727199
- GMC 15735786
- GMC 15741932
- GMC 15742099
- GMC 15991799
- GMC 15991800
- GMC 15991801
- GMC 15991802
- GMC 15991803
- GMC 15991804
- GMC 19257310
- GMC 20956377
- GMC 20956378
- GMC 20956379
- GMC 20956380
- GMC 22064418
- GMC 22064647
- GMC 22064652
- GMC 22064653
- GMC 22064655
- GMC 22064678
- GMC 22064679
- GMC 22064683
- GMC 22064684
- GMC 22064685
- GMC 22064686
- GMC 22064697
- GMC 22064698
- GMC 22064699
- GMC 22064800
- GMC 22064801
- GMC 22064841
- GMC 22065093
- GMC 23296352
- GMC 23296353
- GMC 25751135
- GMC 25751136
- GMC 25751137
- GMC 25751138
- GMC 25856173
- GMC 25856175
- GMC 84020664
- GMC 84020665
- GMC 84020666
- GMC 84020667
- GMC 84020668
- GMC 84020673
- GMC 84040778
- GMC 84040779
- GMC 84040780
- GMC 84301663
- GMC 84301664
- GMC 84301665
- GMC 84303233
- GMC 84303234
- GMC 88945302
- GMC 88945315
- GMC 88982650
- GMC 88982652
- Cadillac 12474709
- Cadillac 15150925
- KYB 565061
- Sensen 1214-0213
- FCS Auto Parts 342524
- OEM 20956377
- KYB 349009
- Gabriel G63638
- Gabriel G63897
- Sensen 12140251
- KYB 344263
- KYB 344262
- FCS Auto Parts 342526
- FCS Auto Parts 342468
- Gabriel G63898
- OEM 25856173
- OEM 84020664
- OEM 23296353
- OEM 84301665
- FCS Auto Parts 342525
- OEM 84020665
- OEM 84301664
- Sachs 030780
- Unity 251220
- ACDelco 5405043
- ACDelco 5601106
- ACDelco 5601107
- ACDelco 5601108
- Gabriel 61687
- KYB 3450017
- Autopart International 2701424145
- Autopart International 2701711348
- General Motors 20956377
- General Motors 23296353
- General Motors 25856173
- General Motors 84020664
- General Motors 84020665
- General Motors 84301663
- General Motors 84301664
- General Motors 84301665
- TRW JGT4170S
- Sensen 12140213
- OSC S349009
- NAPA Shocks 911086
- TRQ SBA72160
- PM Auto PM6001136
- FCS 342468
- FCS 342524
- FCS 342525
- FCS 342526
- KYB KG54341
- KYB KG5479
- KYB 565103
- KYB 565033
- KYB 344483
- KYB KG54101
- KYB 554348
- KYB 565034
- KYB 565087
- KYB 344384
- KYB SR2003
- Sachs 30780
- KYB 565074
- KYB 344273
- KYB KG5188
- KYB KG54100
- NAPA Shocks NS911085
- MasterPro Shocks and Struts GM120
- Duralast TS3431592B
MONROE 911086 Cross Reference
We have 22 alternatives for the 911086 by MONROE:
- 829352491416
- 911086MM
- KYB 565061
- SENSEN 1214-0213
- FCS AUTO PARTS 342524
- OEM 20956377
- KYB 349009
- GABRIEL G63638
- GABRIEL G63897
- SENSEN 12140251
- KYB 344263
- KYB 344262
- FCS AUTO PARTS 342526
- FCS AUTO PARTS 342468
- GABRIEL G63898
- OEM 25856173
- OEM 84020664
- OEM 23296353
- OEM 84301665
- FCS AUTO PARTS 342525
- OEM 84020665
- OEM 84301664
Fits Vehicles
- GMC Yukon (1995-2000)
- GMC K2500 Suburban (1992-1999)
- GMC K1500 Suburban (1992-1999)
- GMC Savana 3500 (1996-2024)
- GMC Savana 2500 (1996-2024)
- Chevrolet Tahoe (1995-2000)
- Chevrolet K2500 Suburban (1992-1999)
- Chevrolet K1500 Suburban (1992-1999)
- Chevrolet Express 3500 (1996-2024)
- Chevrolet Express 2500 (1996-2024)
- Cadillac Escalade (1999-2000)
