MONROE part description

Product Description

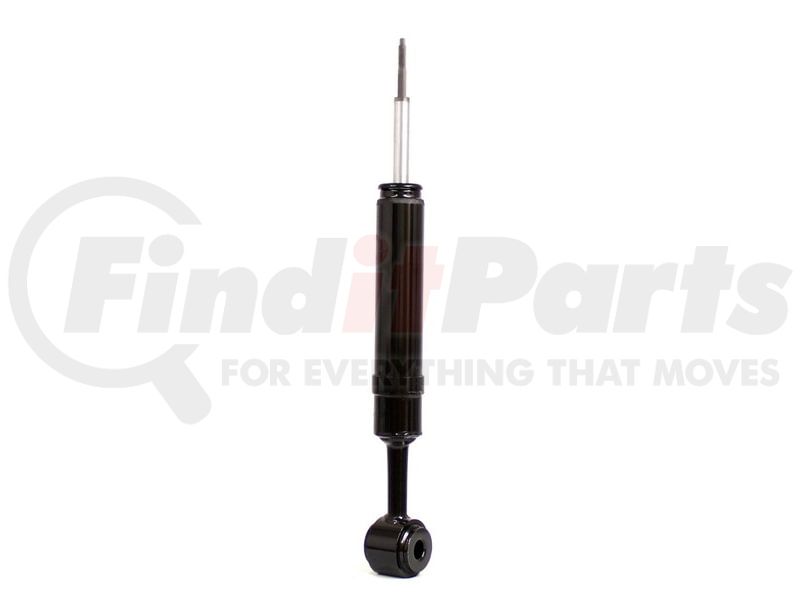

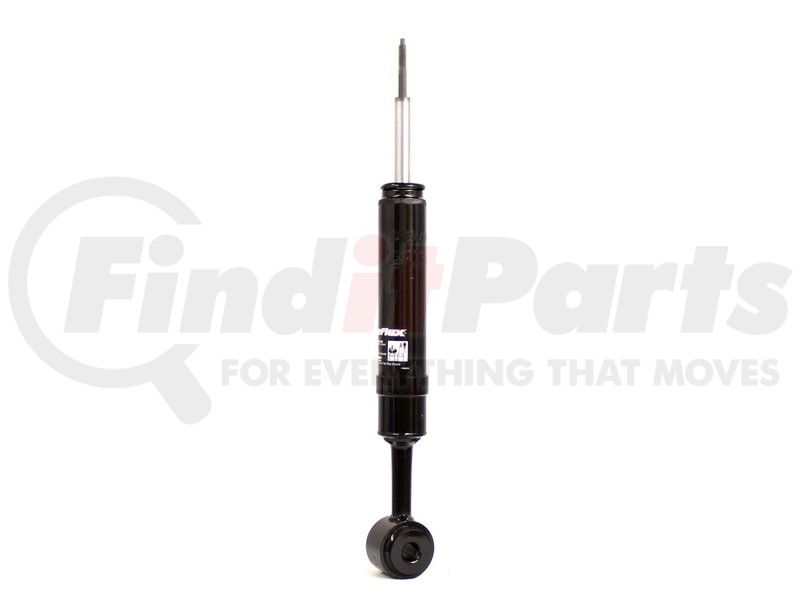

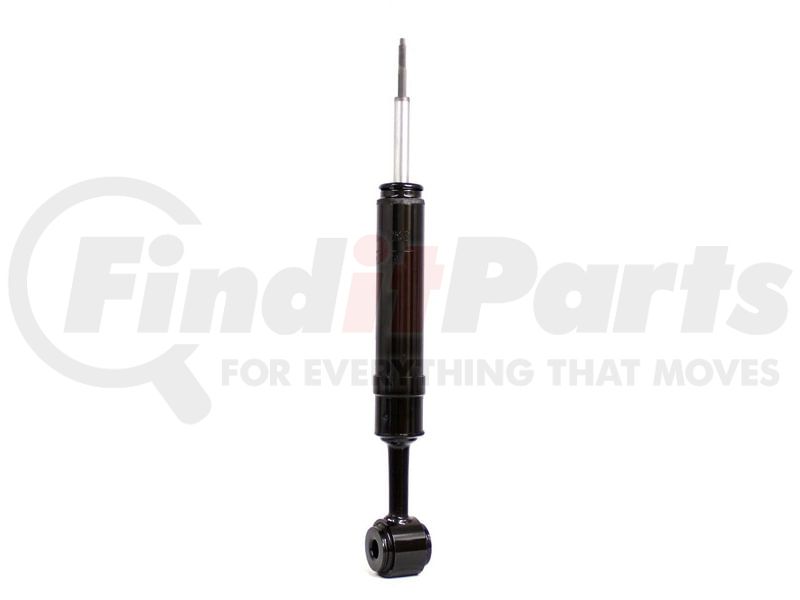

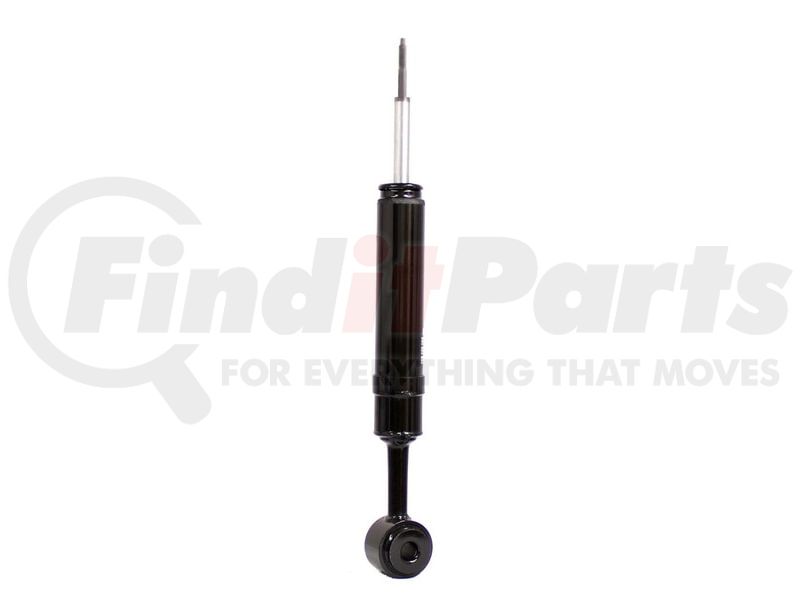

Reflex Suspension Strut

Features & Benefits

  • IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
  • EXCEPTIONAL HANDLING -- Rod displaced valving, tuned specifically to each vehicle, adjusts to road extremes to provide consistency and a smooth ride (on most applications)
  • CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • OPTIONAL DUST BOOT/JOUNCE BUMPER -- Protective dust boot reduces dirt and moisture, while jounce bumper helps prevent severe suspension movement (both sold separately)
  • LONGER SERVICE LIFE -- Bronze reinforced rod guide bearing and special single lip seal combined with hardened, chrome-plated piston rod provides durability and longer service life
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Product Attributes

Compressed Length 16.14 IN
Extended Length 21.05 in
Travel Length 4.91 in
Body Length 15.688 IN
Body Type SS1
Dust Shield Included No
9783 No
9908 No
Strut Charging Type Gas Charged Unit - Strut Rod Will Extend Automatically
Parts Pack(s) P01388
Mounting Hardware Included Yes
Compressed Length 410 MM
Extended Length 534.7 MM
Travel Length 124.7 MM
Gas Charged Yes
Body Length 398.5 MM

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598079053
UNSPSC 25172007

Part Interchanges

MONROE 71369 Cross Reference

We have 2 alternatives for the 71369 by MONROE:

Fits Vehicles

  • Ford Expedition (2003-2006)
