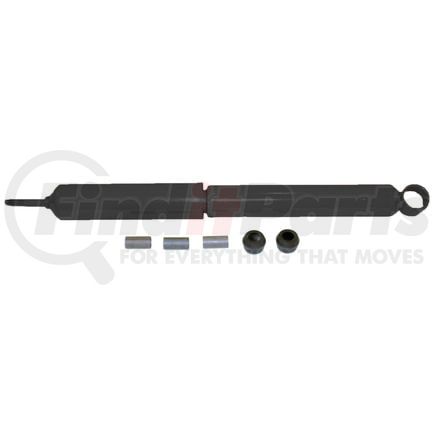

Name: Monroe 66717 Monroe Shocks & Struts Magnum 66717 Shock Absorber
SKU: 66717
Price: 60.12 USD
Availability: OutOfStock

MONROE part description

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791	L3
9789	S4
Dust Shield Included	Yes
9783	No
9908	No
9792	No
Part Description	Shock Absorber
Compressed Length	14.25 IN
Dust Shield Material	Metal
Extended Length	23.42 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL
Parts Pack(s)	P01134,P00120,P00936
Travel Length	9.17 in
Upper Mount Type	Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598074492
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 66717 Cross Reference

We have 35 alternatives for the 66717 by MONROE:

Fits Vehicles

Chevrolet W4500 Tiltmaster (1992-1995)
Isuzu NPR (1986-1995)
Mitsubishi Fuso FK (1986-1988)
