MONROE 65523 Part Description

Manufacturer

MONROE

Product Description

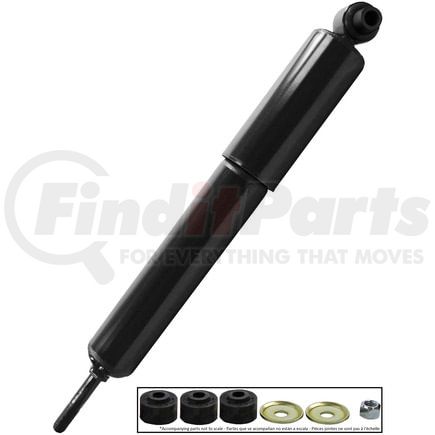

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65523 Specifications

Product Attributes

Lower Mount Code S6
Upper Mount Code LS99
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Compressed Length 12.75 IN
Dust Shield Material Metal
Extended Length 19.75 in
Gas Charged Yes
Lower Mount Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Parts Pack(s) P01482
Travel Length 7 in
Upper Mount Type Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 3.1/4" Sleeve OAL
Compressed Length 323.8 MM
Extended Length 501.7 MM
Travel Length 177.8 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Base of Stem

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598174239
VMRS Code 016008003
UNSPSC 25172011

MONROE 65523 Part Interchanges

Brand Part Number
Kenworth 671656, 671963, C711015, c711015A, C711013
Gabriel 85937, 67196340Y, 85985
Meritor M85937
FOX Commercial Truck Shocks 98031026
Peterbilt 671656, C711013
OEM C711015, 671963, c711015A, 671656, C711015A
Sachs 315655
PETERBILT 671656
Paccar Parts 671963, C711013, C711015, C711015A, C711015PLUS
NAPA Shocks 65523
Bulldog HD HD12150065
FCS F344343, F347306, F343376, F343378, F343368, F344355, F344353, F344342, F347215, F343375
KYB 441600
Alliance Truck Parts ABPN32G900041, ABPN32O900041
Dayton Parts 44185937

MONROE 65523 Fits Vehicles

  • Kenworth T800 (2005-2023)
  • Kenworth W900 (2005-2023)
  • Kenworth W990 (2019-2023)
  • Kenworth T880 (2014-2023)
  • Kenworth T680 (2013-2023)
  • Kenworth T400 (2010-2020)
  • Kenworth T600A (1986-2008)
  • Kenworth T2000 (1997-2011)

MONROE 65523 Cross References
