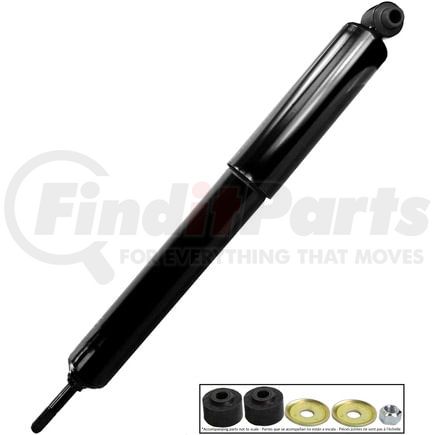

MONROE 65507 Monroe Shocks & Struts Magnum 65507 Shock Absorber

65507 by MONROE - Monroe Shocks & Struts Magnum 65507 Shock Absorber
MONROE
Tap to view 3 more
SHIPS MONDAY

MSRP: $197.69

$114.99

Save $82.70

Limited availability at this price!

In Stock

Get it by Friday, Jan 23
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will ship the following business day

MONROE 65507 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65507 Specifications

Product Attributes

Lower Mount Code S6
Upper Mount Code LS62
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Compressed Length 13.7656 IN
Dust Shield Material Metal
Extended Length 21.8594 in
Gas Charged Yes
Lower Mount Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Parts Pack(s) P01482
Travel Length 8.093 in
Upper Mount Type Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2.9/16" Sleeve OAL
Compressed Length 349.6 MM
Extended Length 555.2 MM
Travel Length 205.6 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Base of Stem

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598174079
VMRS Code 016008003
UNSPSC 25172011

MONROE 65507 Cross References

BrandPart Number
65507MM
AutomannA83143
BULLDOG HD SHOCKSHD1215-0132
Bulldog HDHD12150132 , HD12150132
Dayton Parts44183143
EUCLIDE14045
FCSF344355, F347306, F346599, F343368, F347274, F344353, F346633, F344342, F347215, F344343, F347303
Freightliner60680004
GABRIEL83143
Gold Shock Absorber9180239
HALDEXSA65507
HENDRICKSON606806, 606804, 60680004
Hendrickson60680004L, 64178001, 659048
International Harvester (IHC)60680004
KYB341620
Kenworth60680004, 60680004L
MERITORM83143
Mack60680004
NAPA Shocks65507
OEM606804, 60680004, 60680004L
Peterbilt60680004
Western Star60680004

MONROE 65507 Fits Vehicles

  • International 7500 (2002-2020)
  • International 7400 (2002-2020)
  • International 7300 (2002-2020)
  • Peterbilt 548 (2022)
  • Kenworth T800 (2001-2023)
  • Freightliner M2 (2005-2021)
  • Freightliner Condor (2001-2007)
  • Volvo VHD (2001-2020)
  • Western Star 4800SF (2013-2022)
  • Western Star 4800SB (2012-2022)
  • Western Star 4900FA (2002-2023)
  • Western Star 4900EX (2002-2022)
  • Western Star 4900E (2001-2002)
  • Western Star 4900SA (2002-2023)
  • Autocar LLC. DC-64 (2020-2023)
  • Kenworth T480 (2022-2024)
  • Kenworth W900 (2001-2023)
  • Western Star 4700SF (2012-2021)
  • Western Star 4700SB (2012-2021)
  • Freightliner 122SD (2013-2023)
  • International HV507 (2019-2022)
  • International HV513 (2019-2022)
  • International HV613 (2019-2022)
  • International HV607 (2019-2022)
  • Mack Anthem (2018-2022)
  • Mack Granite (2015-2024)
  • International HX520 (2018-2022)
  • Peterbilt 520 (2017-2021)
  • International HX620 (2017-2022)
  • International HX615 (2017-2022)
  • International HX515 (2017-2022)
  • Peterbilt 389 (2008-2021)
  • Kenworth T880 (2014-2024)
  • Kenworth T680 (2013-2023)
  • Mack GU8 (2008-2019)
  • Mack GU7 (2008-2019)
  • Peterbilt 388 (2008-2015)
  • Peterbilt 367 (2008-2021)
  • Peterbilt 567 (2014-2023)
  • Mack GU5 (2012-2018)
  • Mack GU4 (2012-2019)
  • Peterbilt 365 (2008-2021)
  • Kenworth T400 (2010-2022)
  • Autocar LLC. Xpeditor (2008-2022)
  • Peterbilt 357 (2002-2008)
  • Peterbilt 320 (2001-2018)
  • Peterbilt 348 (2010-2021)
  • Autocar LLC. Xpert (2012, 2014-2021)
  • Freightliner 108SD (2012-2023)
  • Freightliner 114SD (2012-2023)
  • International 5600i (2004-2014)
  • Freightliner M2 112 (2003-2021)
  • Kenworth T370 (2008-2022)
  • Kenworth T270 (2008-2022)
  • Freightliner M2 106 (2002-2021)
  • Caterpillar CT660 (2012-2017)
