MONROE 58601 Part Description
Manufacturer
Product Description

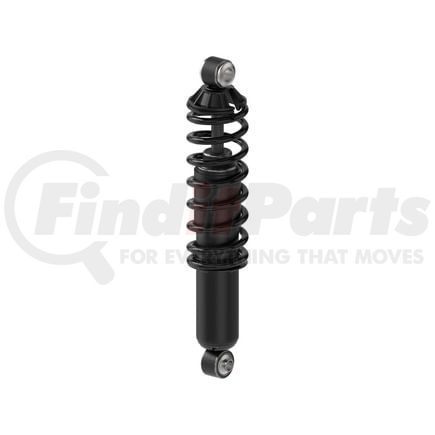

Load Adjusting Suspension Shock Absorber and Coil Spring Assembly Pack of 2
Features & Benefits
- REDUCES SAG UNDER LOAD -- Ideal for occasionally hauling or towing varying loads; heavy gauge, calibrated coil spring reduces sag when loaded up to 1,200 lbs. (capacity limited by suspension, tires and transmission; see owner's manual)
- EXCEPTIONAL HANDLING -- Tuned specifically for each application, full-displaced valving automatically adjusts to road extremes to provide ride consistency
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and PTFE-banded piston helps reduce friction between the piston and pressure tube to enhance responsiveness to changing road surfaces
- LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear while heavy-duty nitrocarburized rod delivers long life
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
MONROE 58601 Specifications
Product Attributes
| Lower Mount Code | LS26 |
| Upper Mount Code | L1 |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Parts Pack(s) | None |
| Part Description | Shock Absorber and Coil Spring Assembly |
| Compressed Length | 14.25 IN |
| Dust Shield Included | Yes |
| Dust Shield Material | Metal |
| Extended Length | 23 in |
| Internal Rebound Bumper | No |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL |
| Travel Length | 8.75 IN |
| Upper Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Compressed Length | 362 MM |
| Extended Length | 584.2 MM |
| Travel Length | 8.75 in |
| Travel Length | 222.3 MM |
| Upper Mount Code | L1 |
| Dust Shield Included | Yes |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598010117 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 58601 Part Interchanges
| Brand | Part Number |
|---|---|
| Ford | E4TZ18124F, E4TZ18124G, E4TZ18125M, E5TZ18125B, E7TZ18124A, E7TZ18124B, E7TZ18124C, E7TZ18124D, E7TZ18124E, E7TZ18124F, E7TZ18124G, E7TZ18124H, E7TZ18124J, E7TZ18124R, E7TZ18125A, E7TZ18125B, E7TZ18125C, E7TZ18125D, E7TZ18125E, E7TZ18125G, E7TZ18125J, E7TZ18125K, E7TZ18125N, E7XZ18124B, E7XZ18124D, E7XZ18124E, E7XZ18124F, E7XZ18125D, E7XZ18125G, F2TZ18125A, F2TZ18125P, F4TZ18124B, F4TZ18124D, F4TZ18124E, F4TZ18124F, F4TZ18124G, F4TZ18124H, F4TZ18124J, F4TZ18125B, F4TZ18125C, F4TZ18125D, F4TZ18125F, F4TZ18125G, F4TZ18125N, F5TZ18124AA, F5TZ18125AA, F7AZ18124RB, F7AZ18124TB, F7AZ18124ZG, F7AZ18125YA, FOTZ18125A, FOTZ18125D |
| Gabriel | 43167 |
| NAPA Shocks | 58601 |
MONROE 58601 Fits Vehicles
- Ford F-100 Ranger (1996)
- Ford F-250 (1980-1996)
- Ford F-150 (1985-1996)
MONROE 58601 Cross References
We have 3 alternatives for the 58601 by MONROE:
